Remove old shaft seal
Authorized staff
All work done on the products and the systems in which they are or will be installed may only be performed by qualified and authorised staff who have been trained and instructed in all work. The qualification and expert knowledge of the qualified staff must correspond to the local regulations and guidelines.
Remove oil drain tube
Remove sealing cover
Information
Loosen screws uniformly and mind the spring tension of the shaft seal!
Loosen screws uniformly and mind the spring tension of the shaft seal!
- Hexagon spanner 5 mm
- Oil drain pan (if necessary)
- Use a plastic hammer to loosen the sealing cover with light taps if necessary
Loosen 3 stud screws at old rotating unit
NOTICE
Possible damage to the shaft surface! Loosen the stud screws sufficiently before removal!
Possible damage to the shaft surface! Loosen the stud screws sufficiently before removal!
Do not tilt rotating unit when pulling out!
- Hexagon spanner with shortened leg
Pull rotating unit from shaft
- Pulling device
NOTICE

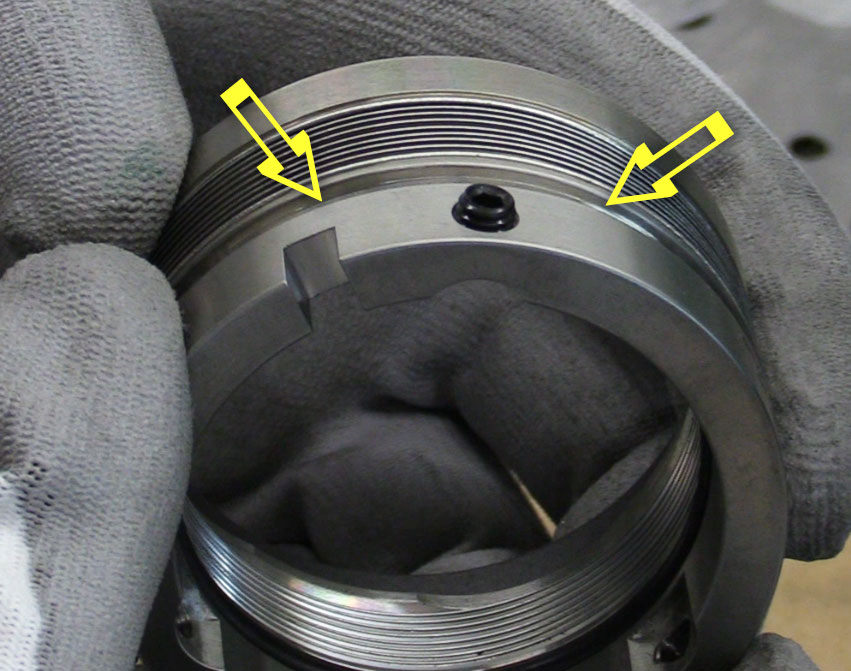

Possible damage to the shaft surface! Do not tilt rotating unit when pulling out! Place pulling device into slot (see figure)!
Possible damage to the shaft surface! Do not tilt rotating unit when pulling out! Place pulling device into slot (see figure)!
