Remove old extension board
Authorized staff
All work done on the products and the systems in which they are or will be installed may only be performed by qualified and authorised staff who have been trained and instructed in all work. The qualification and competence of the qualified staff must correspond to the local regulations and guidelines.
NOTICE
ESD can destroy electronical components. Only use boards which are covered with plastic and are packed in ESD bags.
ESD can destroy electronical components.
Only use boards which are covered with plastic and are packed in ESD bags.
Touch board only at plastic housing!
Do not touch circuit board with fingers or any kind of objects!
Label and unplug terminals Klemmen CN1 .. CN9
- Tape and pen to mark cables and terminals or
- Take photo of terminal assignment

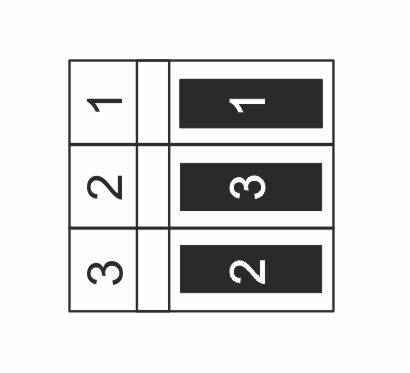

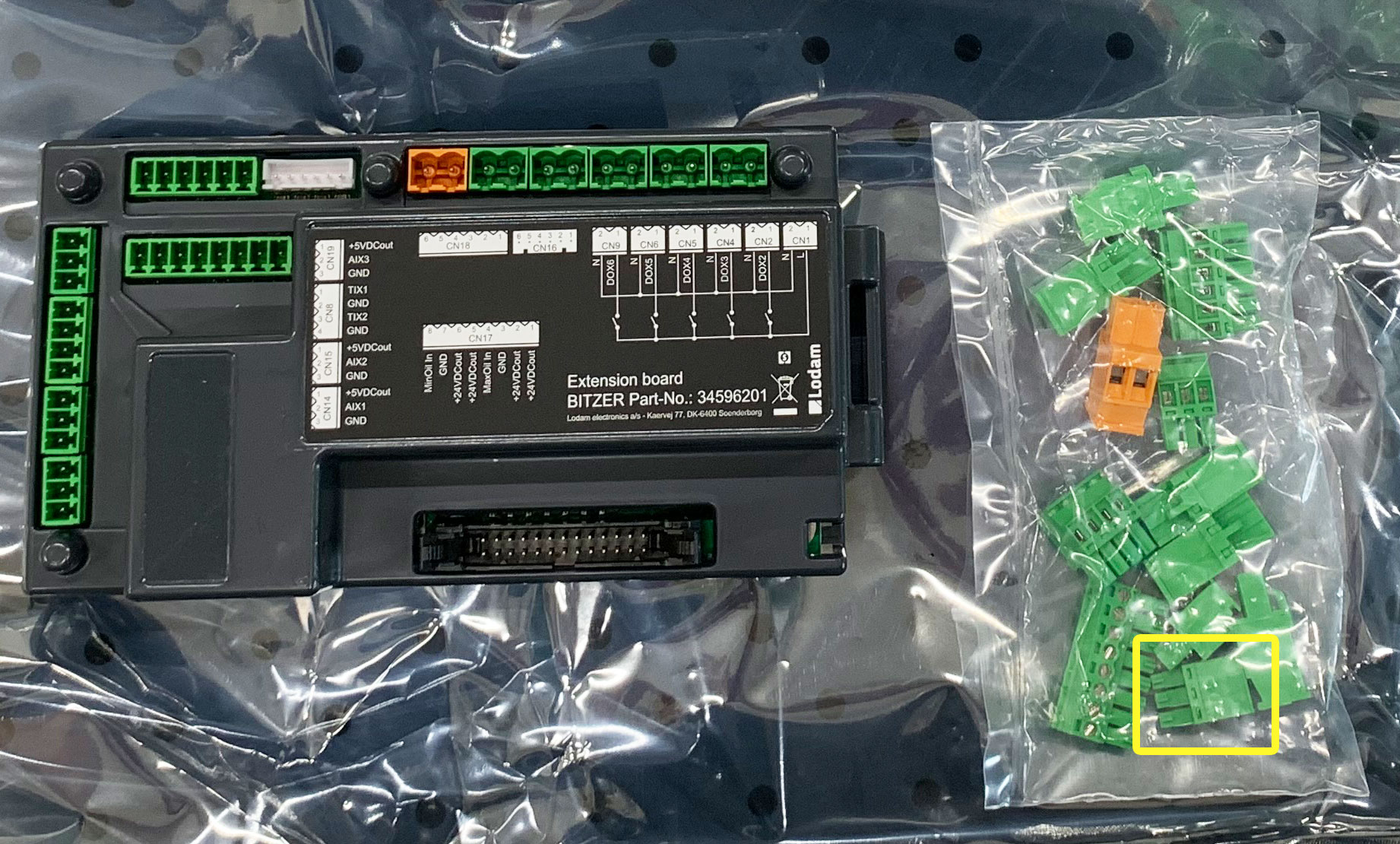

Screw cable cores of the high pressure transmitter to new, smaller terminal CN14
- Pen
- Screwdriver (e.g. SL 0,8x4,0)
- Note terminal assignment!
Screw cable cores of the low pressure transmitter to new, smaller terminal CN15
- Pen
- Screwdriver (e.g. SL 0,8x4,0)
- Note terminal assignment!

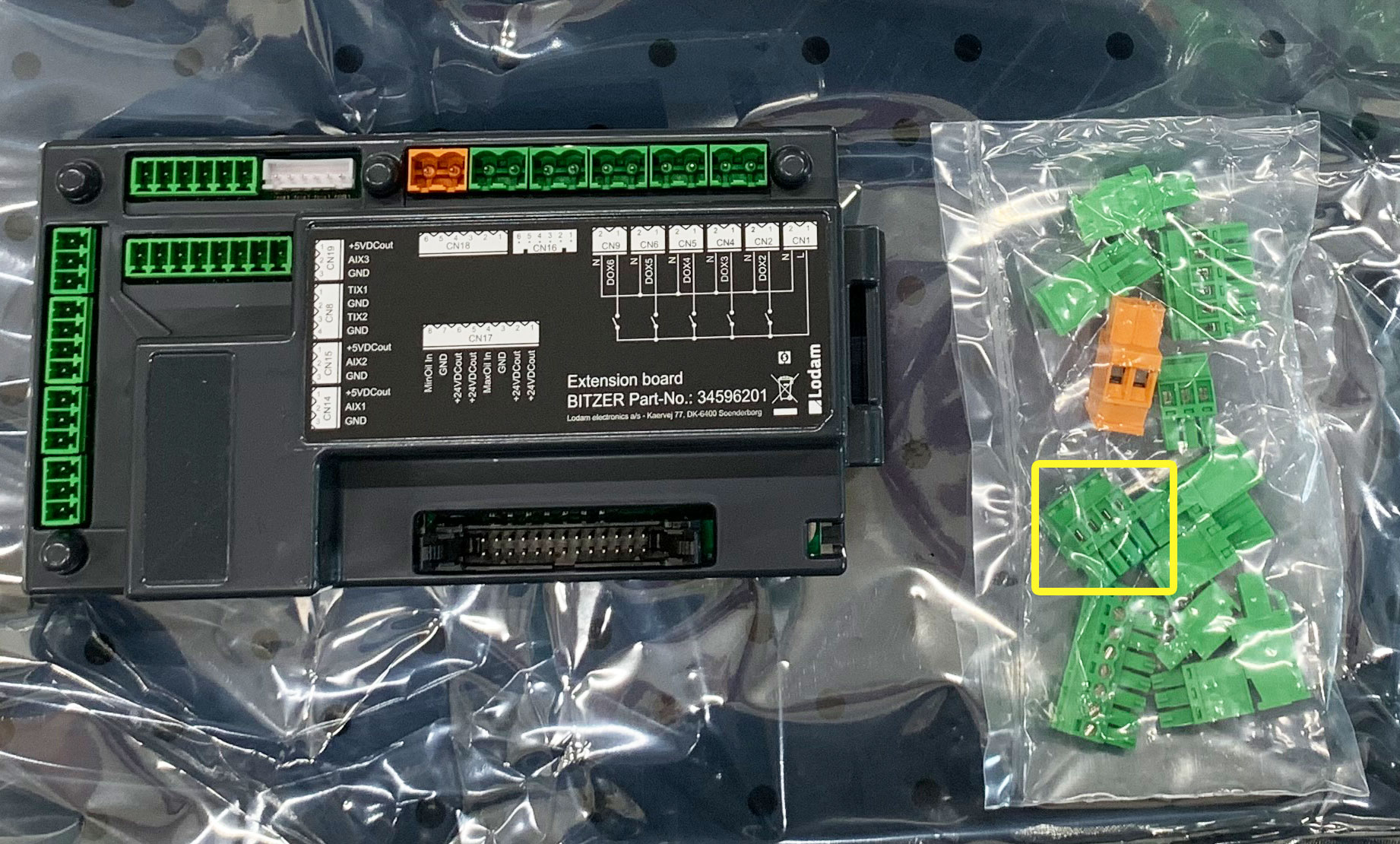

Screw cable cores of the oil temperature sensor to new, smaller terminal CN8
- Pen
- Screwdriver (e.g. SL 0,8x4,0)
Unscrew cable cores at terminals CN11 and CN12 (oil monitoring)
- Screwdriver (e.g. SL 0,8x4,0)

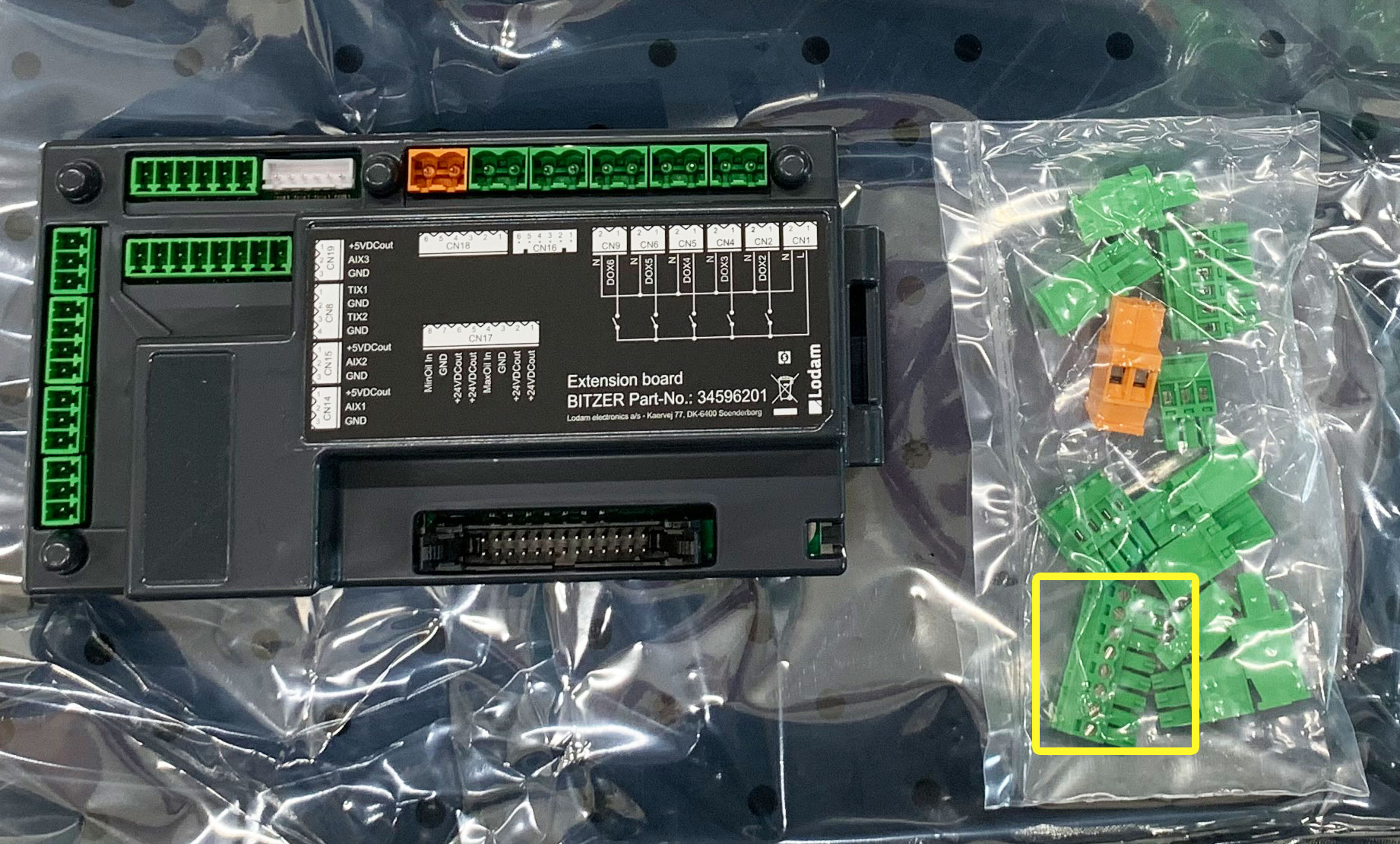

Screw the 4 cable cores of the oil monitoring (OLC min) to the new terminal CN17
- Screwdriver (e.g. SL 0,8x4,0)
