Coupling KS1000 for OS.A105

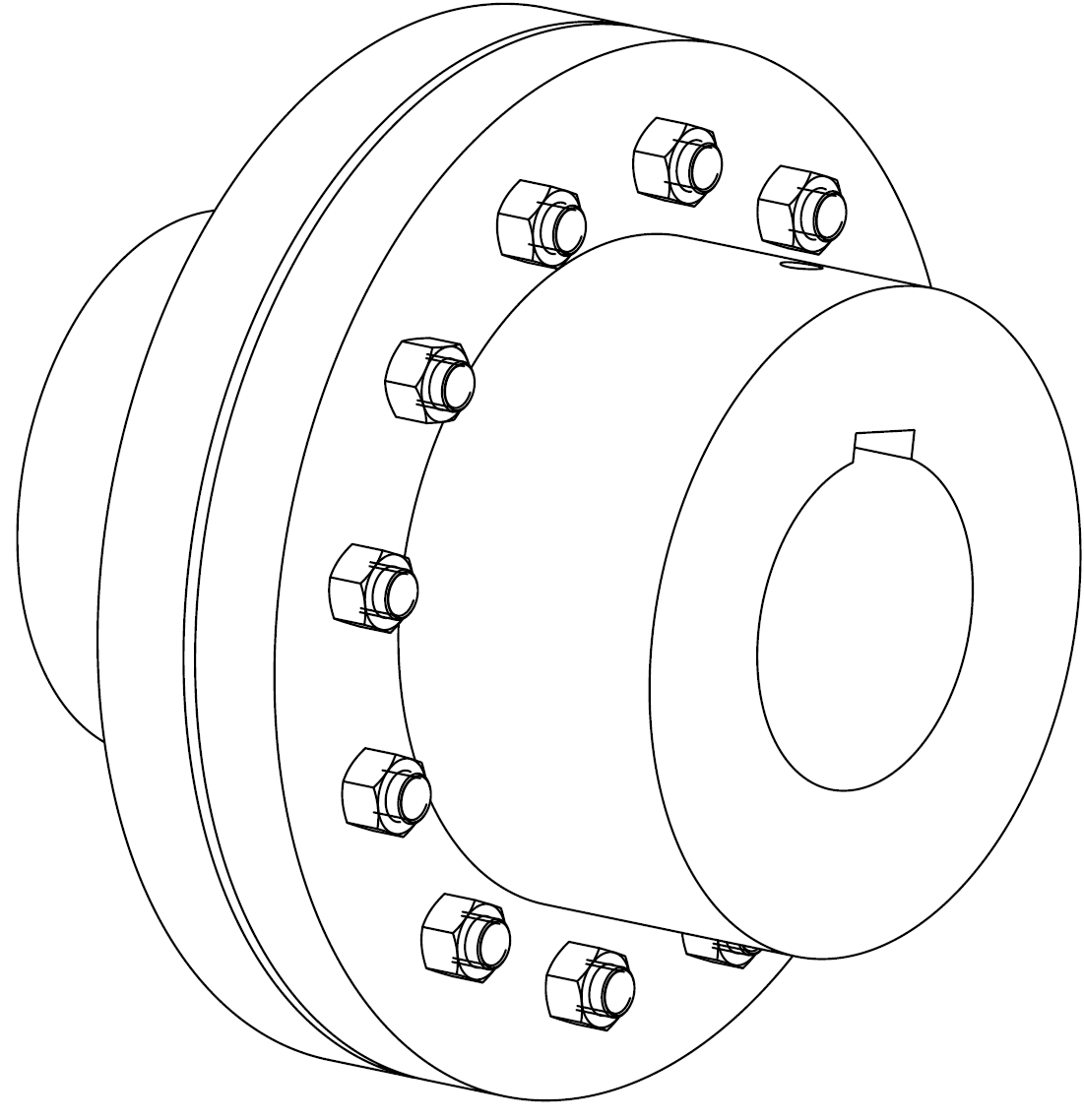

Dimensions:
The KS1000 coupling is available with different hub lengths on the motor side (dimension "E" in dimensional drawing) to ensure sufficient torque transmission (Check torque transmission).
A | B | C | D | E | |
|---|---|---|---|---|---|
KS1000, bore for shaft D70, | Ø 70 mm | 20 mm | 20 mm | 74.9 mm | 110 mm |
KS1000, bore for shaft D75, | Ø 75 mm | 20 mm | 20 mm | 79.9 mm | 110 mm |
KS1000, bore for shaft D80, | Ø 80 mm | 20 mm | 22 mm | 85.4 mm | 100 mm |
KS1000, bore for shaft D40, pre-drilled, | Ø 40 mm | 20 mm | – | – | 100 mm |
KS1000, bore for shaft D40, pre-drilled, | Ø 40 mm | 20 mm | – | – | 110 mm |
Connection positions | ||
|---|---|---|
1 | Compressor side | |
2 | Motor side | |
3 | Compressor shaft | |
4 | Motor shaft | |
Dimensions (if specified) may have tolerances according to EN ISO 13920-B.
The legend applies to all BITZER couplings and includes connection positions that do not exist in every series.
If the motor is different, an individual design of coupling and housing is necessary!
Make sure that the torque transmission between the motor shaft and the coupling half in contact is sufficient (Check torque transmission).
