Photos of spare part assemblies

Spare part assemblies for which there are no photos are not shown here. All spare parts assemblies are listed in the table above.

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.

Part no. 361 329 16:

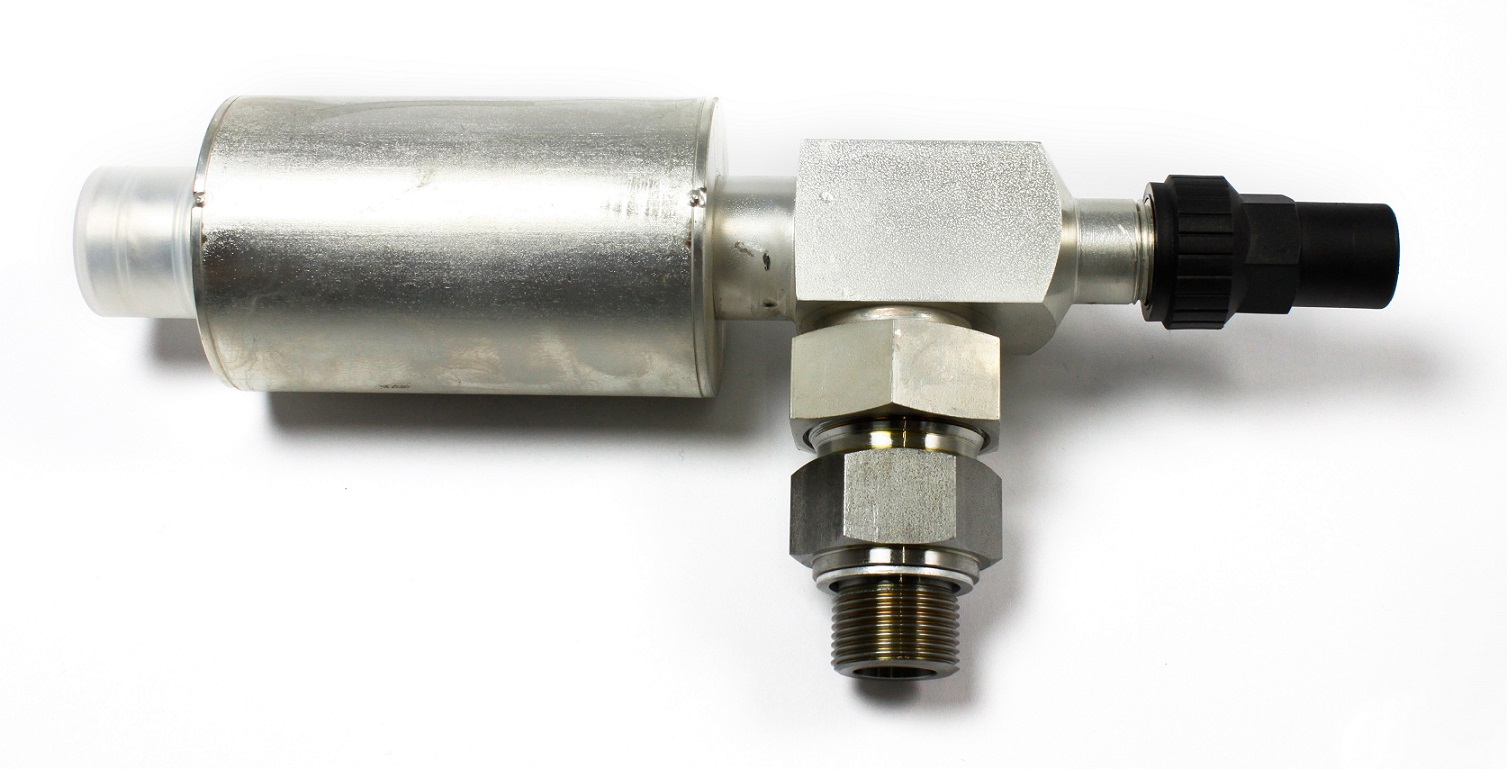

Spare part assembly for shut-off valve D22-7/8'' with pulsation muffler, ECO connection at compressor CSH(P)65 .. 75
Spare part assembly for shut-off valve D22-7/8'' with pulsation muffler, ECO connection at compressor CSH(P)65 .. 75

Part no. 361 330 01:

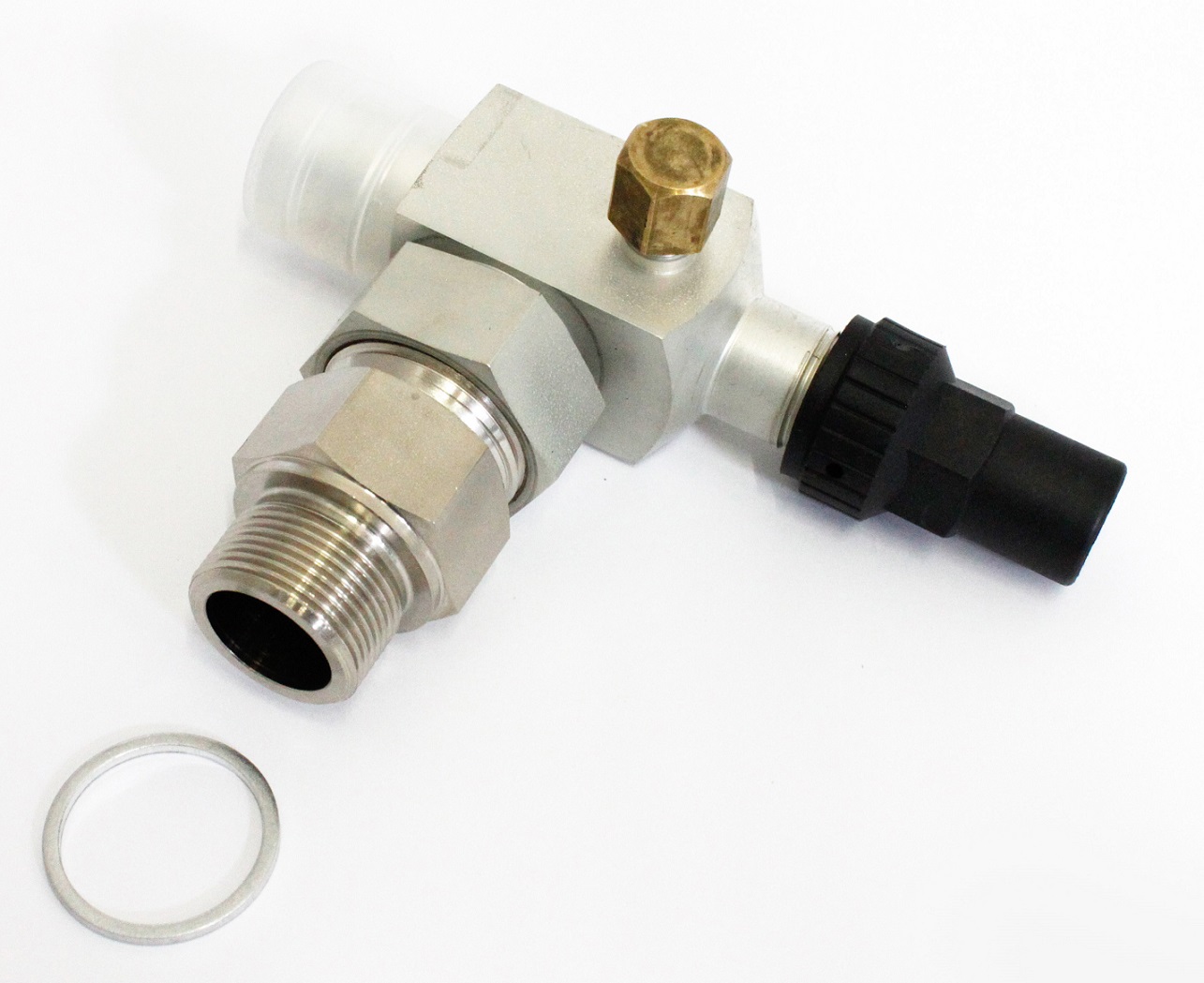

Spare part assembly for shut-off valve D22L-7/8''-DN20, ECO connection at compressor HS.53 .. 74, OS.74 and CSW65
Spare part assembly for shut-off valve D22L-7/8''-DN20, ECO connection at compressor HS.53 .. 74, OS.74 and CSW65

Part no. 361 330 02:

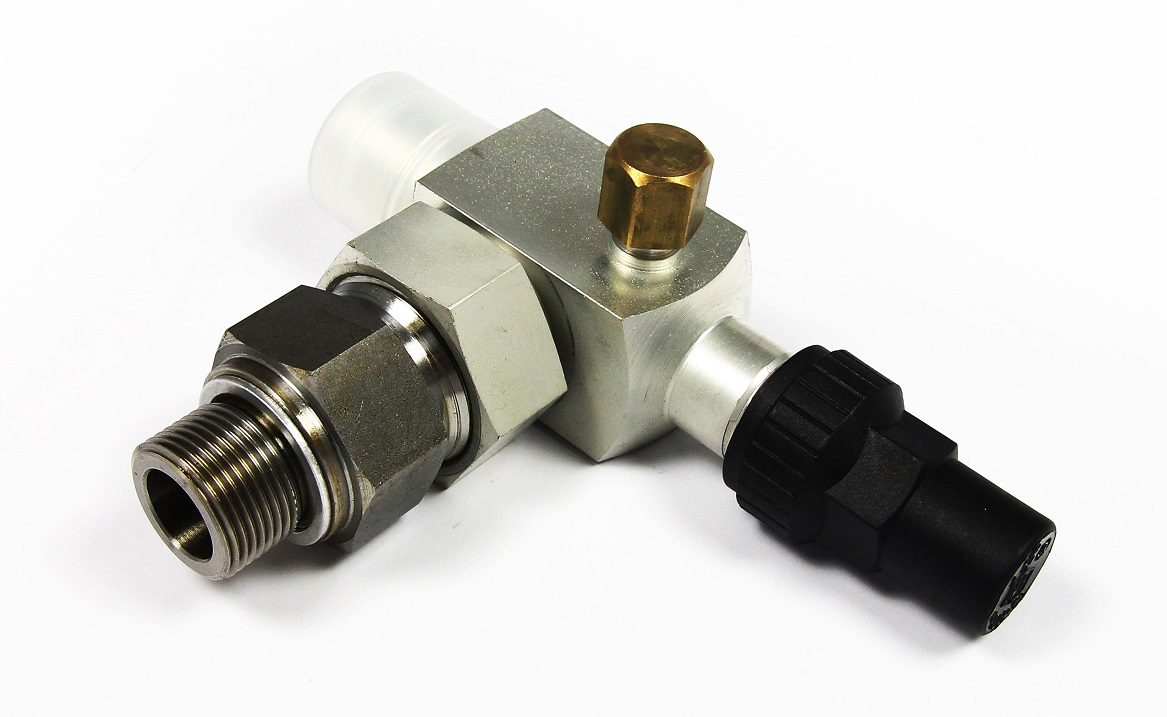

Spare part assembly for shut-off valve D22L-7/8''-DN20, ECO connection at compressor OS.53
Spare part assembly for shut-off valve D22L-7/8''-DN20, ECO connection at compressor OS.53

Part no. 361 330 03:

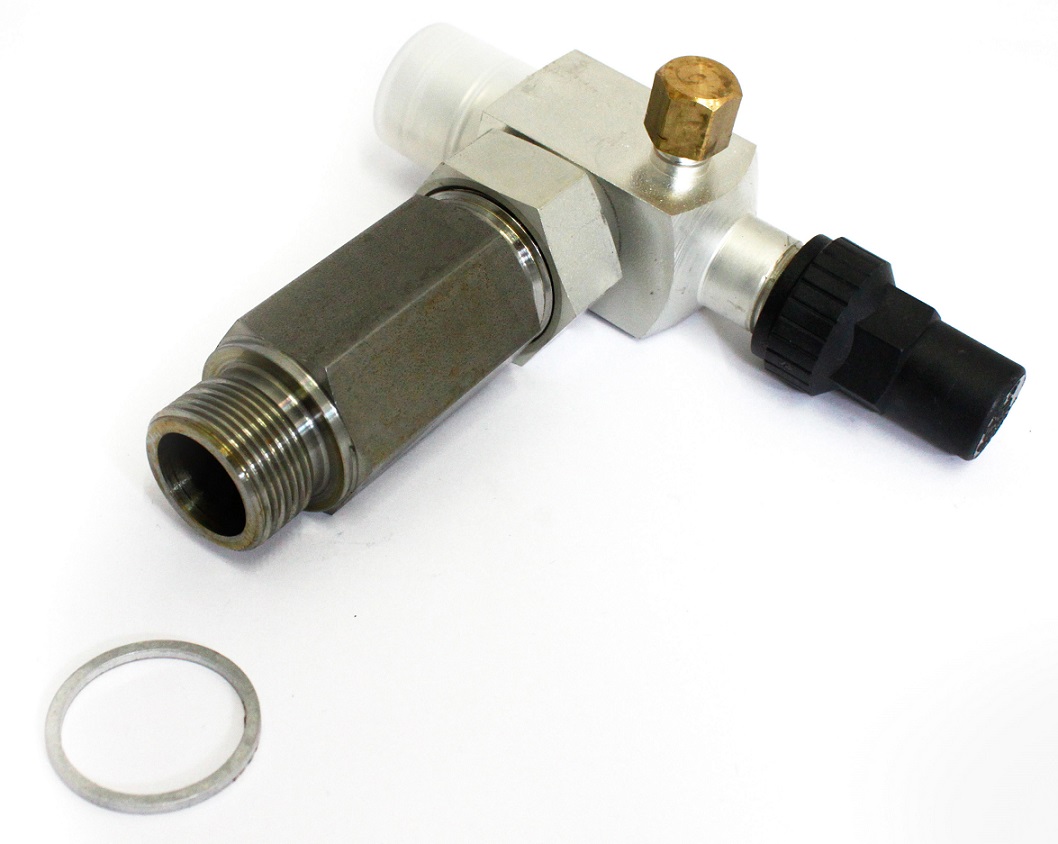

Spare part assembly for shut-off valve D22L–7/8''–DN20, ECO connection at compressor CSH76 and CSW75
Spare part assembly for shut-off valve D22L–7/8''–DN20, ECO connection at compressor CSH76 and CSW75

Part no. 361 330 05:

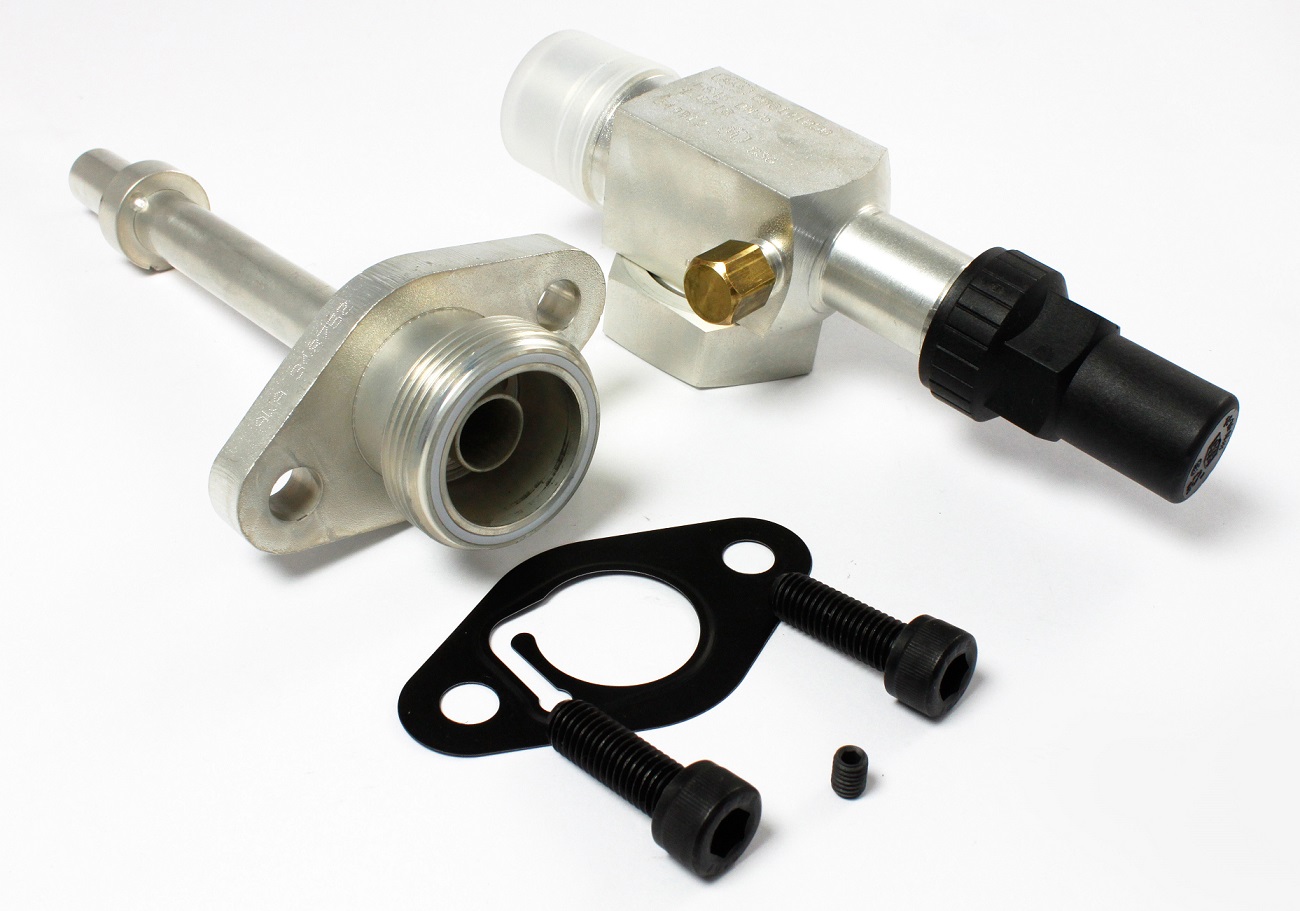

Spare part assembly for shut-off valve D28L-1 1/8''-DN25, ECO connection at compressor CSH(P)85
Spare part assembly for shut-off valve D28L-1 1/8''-DN25, ECO connection at compressor CSH(P)85

Part no. 361 330 07:

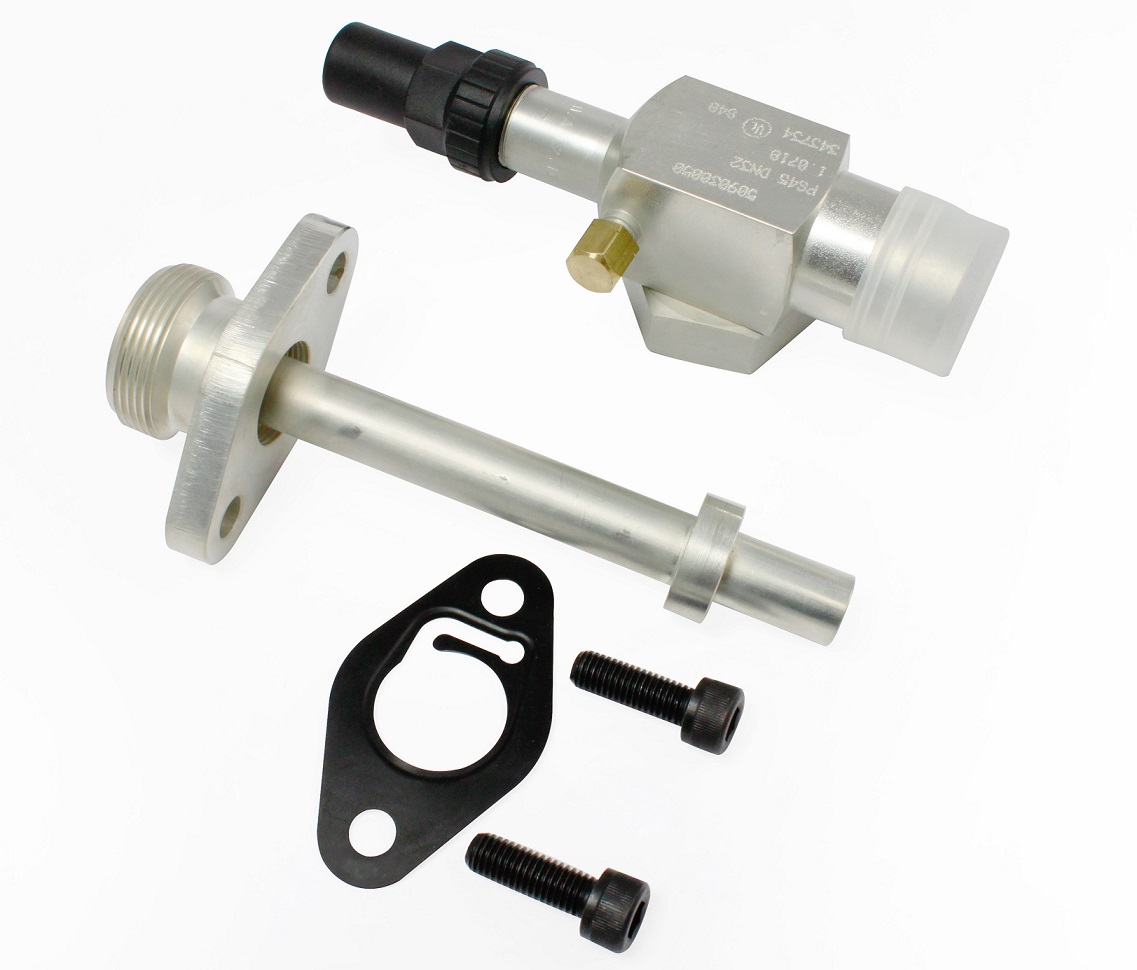

Spare part assembly for shut-off valve D35L-1 3/8''-DN36 (1 3/4''), ECO connection at compressor CSH(P)95
Spare part assembly for shut-off valve D35L-1 3/8''-DN36 (1 3/4''), ECO connection at compressor CSH(P)95

Part no. 361 330 12:

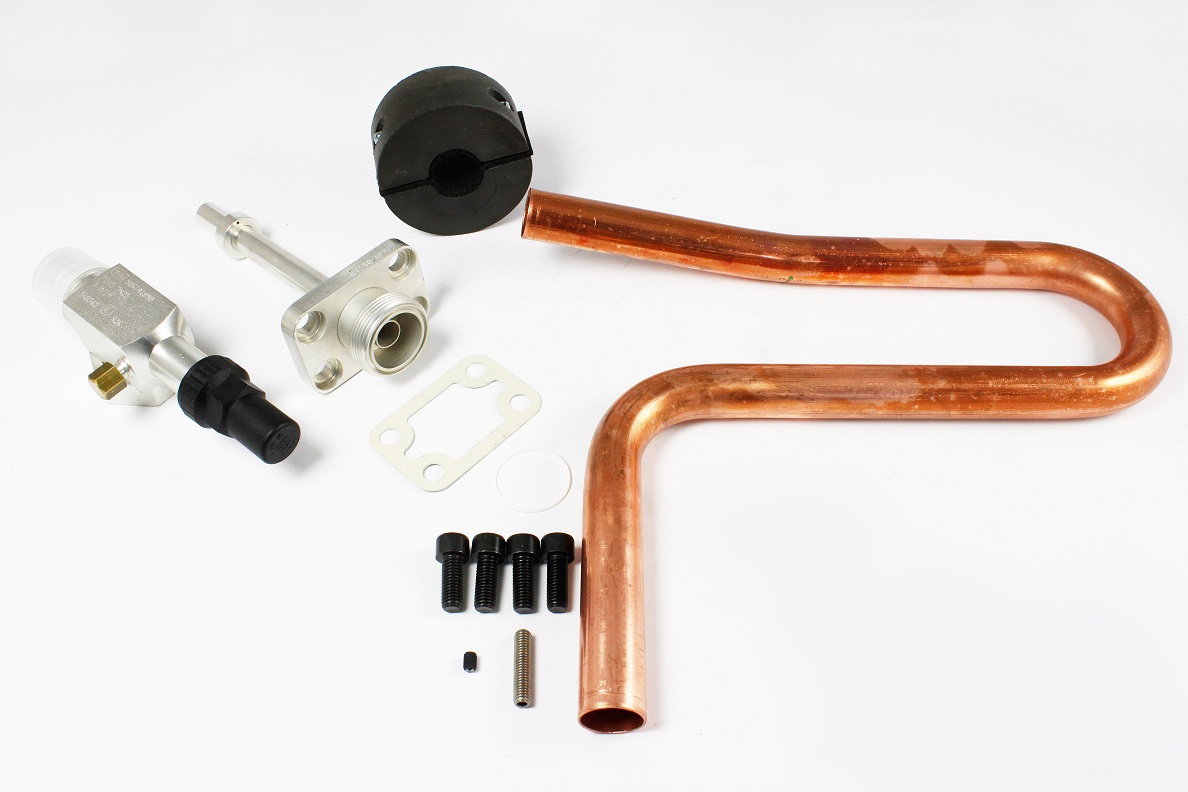

Spare part assembly for shut-off valve D28L-1 1/8''-DN25, ECO connection at compressor HS.85
Spare part assembly for shut-off valve D28L-1 1/8''-DN25, ECO connection at compressor HS.85

Part no. 361 330 13:

Spare part assembly for shut-off valve with welding bush DN32 (1 3/4''), ECO connection at compressor OS.A85
Spare part assembly for shut-off valve with welding bush DN32 (1 3/4''), ECO connection at compressor OS.A85

Part no. 361 330 15:

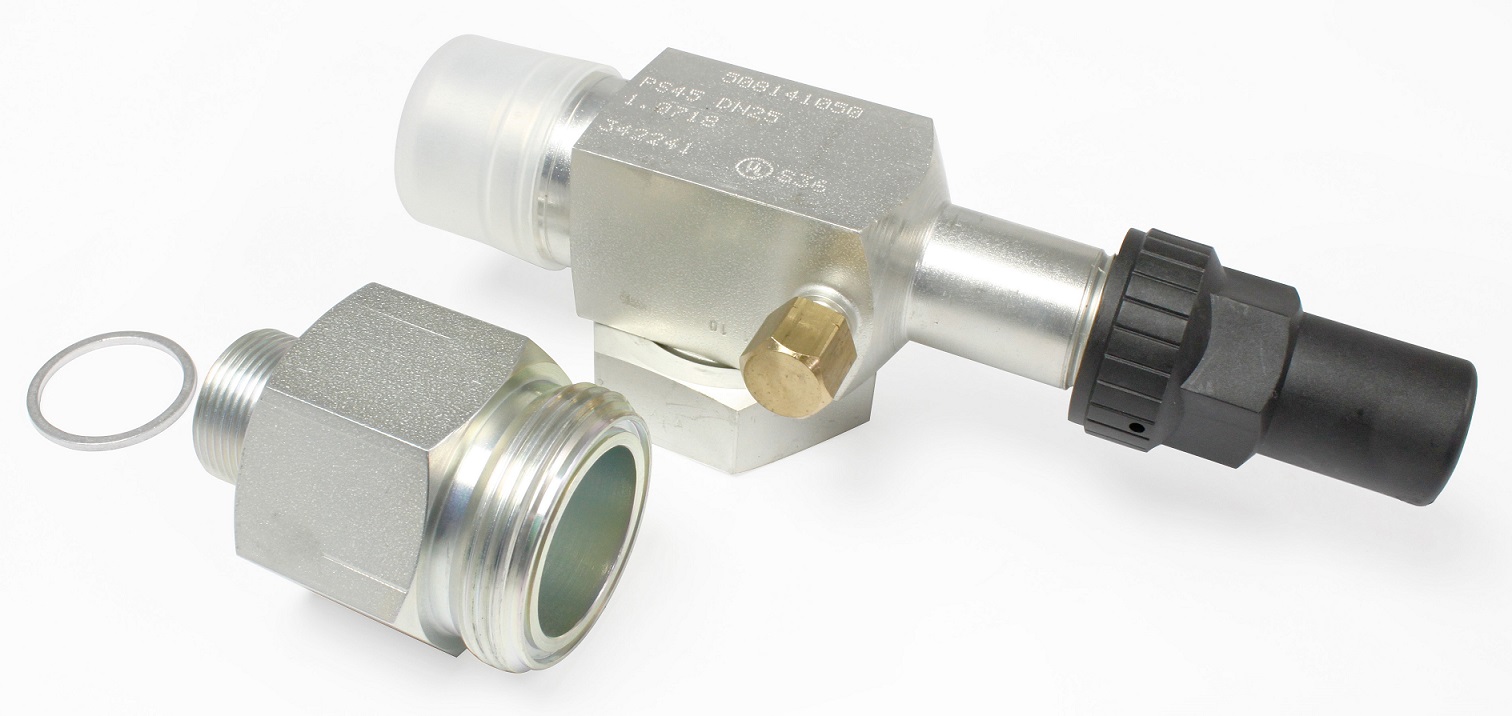

Spare part assembly for shut-off valve D28L-1 1/8''-DN25, ECO connection at compressor CSH86 and CSW85
Spare part assembly for shut-off valve D28L-1 1/8''-DN25, ECO connection at compressor CSH86 and CSW85

Part no. 361 330 16:

Spare part assembly for shut-off valve D35L-1 3/8''-DN36 (1 3/4''), ECO connection at compressor CSH96 and CSW95
Spare part assembly for shut-off valve D35L-1 3/8''-DN36 (1 3/4''), ECO connection at compressor CSH96 and CSW95

Part no. 361 330 17:

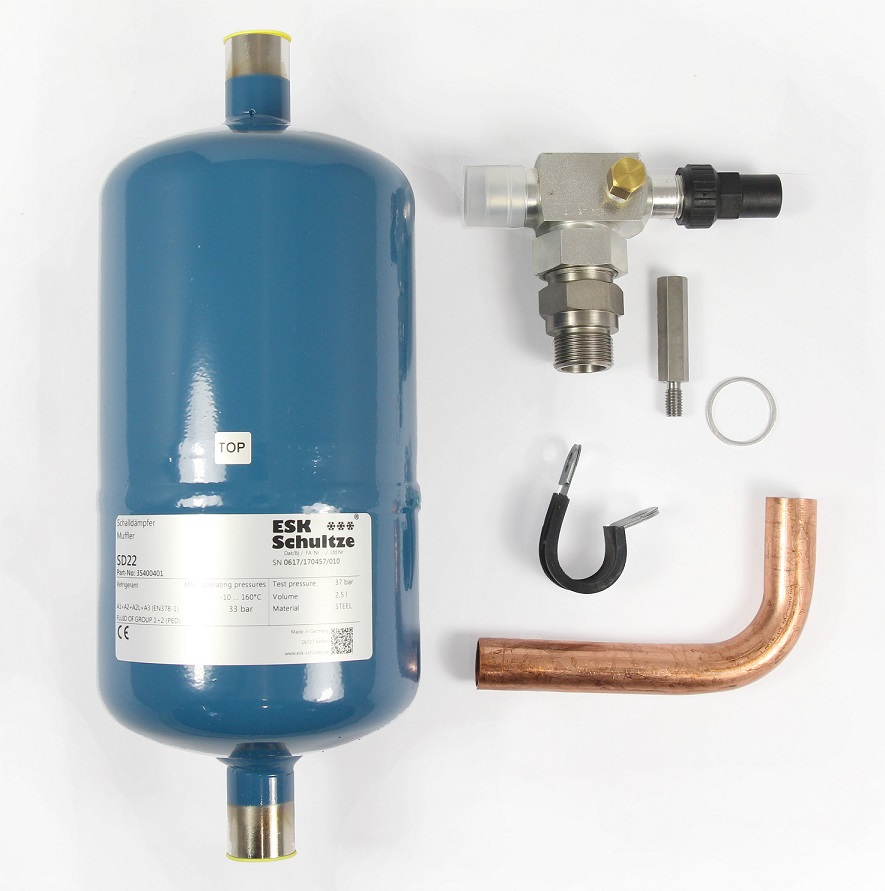

Spare part assembly for shut-off valve D22L-7/8''-DN20 with pulsation muffler, ECO connection at compressor CSV.2
Spare part assembly for shut-off valve D22L-7/8''-DN20 with pulsation muffler, ECO connection at compressor CSV.2

Part no. 361 331 02:

Spare part assembly for welding bush DN20 (1 1/4''), ECO connection at compressor HS.53 .. 74

Part no. 361 369 10:

Spare part assembly for shut-off valve with welding bush DN20 (1 1/4''), ECO connection at compressor OS.A53 .. 74
