Remove old fan
Information

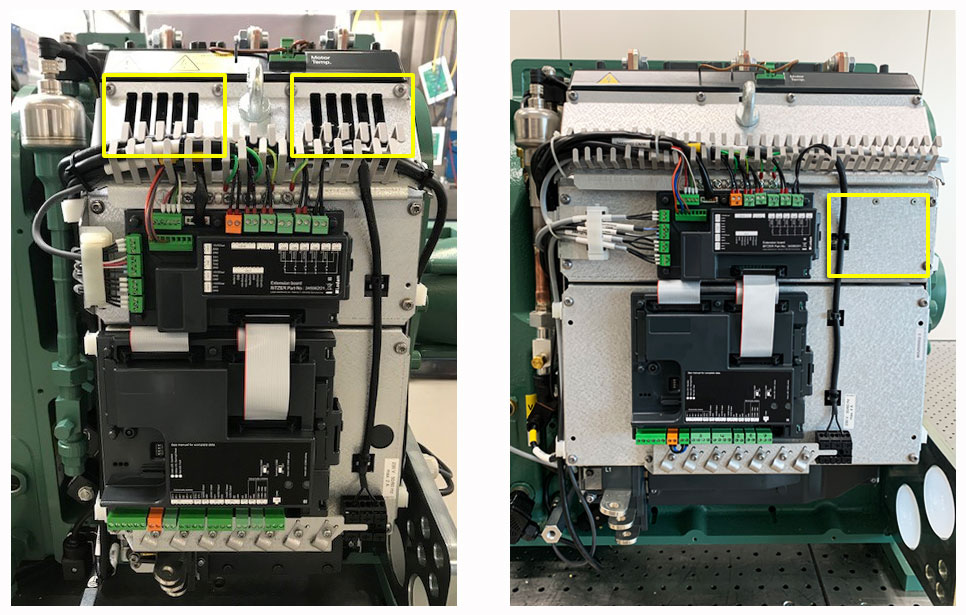

While CSV.2 compressors have two fans, CSV.3 compressors only have one (see photo).
While CSV.2 compressors have two fans, CSV.3 compressors only have one (see photo).
These maintenance instructions describe the replacement of the fan of CSV.3 compressors.
Remove upper metal plate
NOTICE
The circuit board and fan are located underneath the plate.
The circuit board and fan are located underneath the plate.
Do not touch circuit board with fingers or any kind of objects!
- TX25 screwdriver
Remove screws of lower metal plate
- TX25 screwdriver
