Retrofitting CM-RC-02 incl. CRII cylinder heads (ENERGY KIT)
The ENERGY KIT is available for the following compressors:
- 4FES(P) .. 4CES(P)
- 4VES(P) .. 4NES(P)
- 4VE .. 4NE
- 4JE(P) .. 4FE(P)
- 6JE(P) .. 6FE(P)
Retrofitting a CM-RC-02 compressor module including CRII capacity regulators (cylinder heads incl. solenoid valves) is possible with the ENERGY KIT. This includes CM-RC-02, extension board CM-IO-B, CRII kit (cylinder heads, solenoid valve, cable), discharge gas temperature sensor, high and low pressure transmitter.

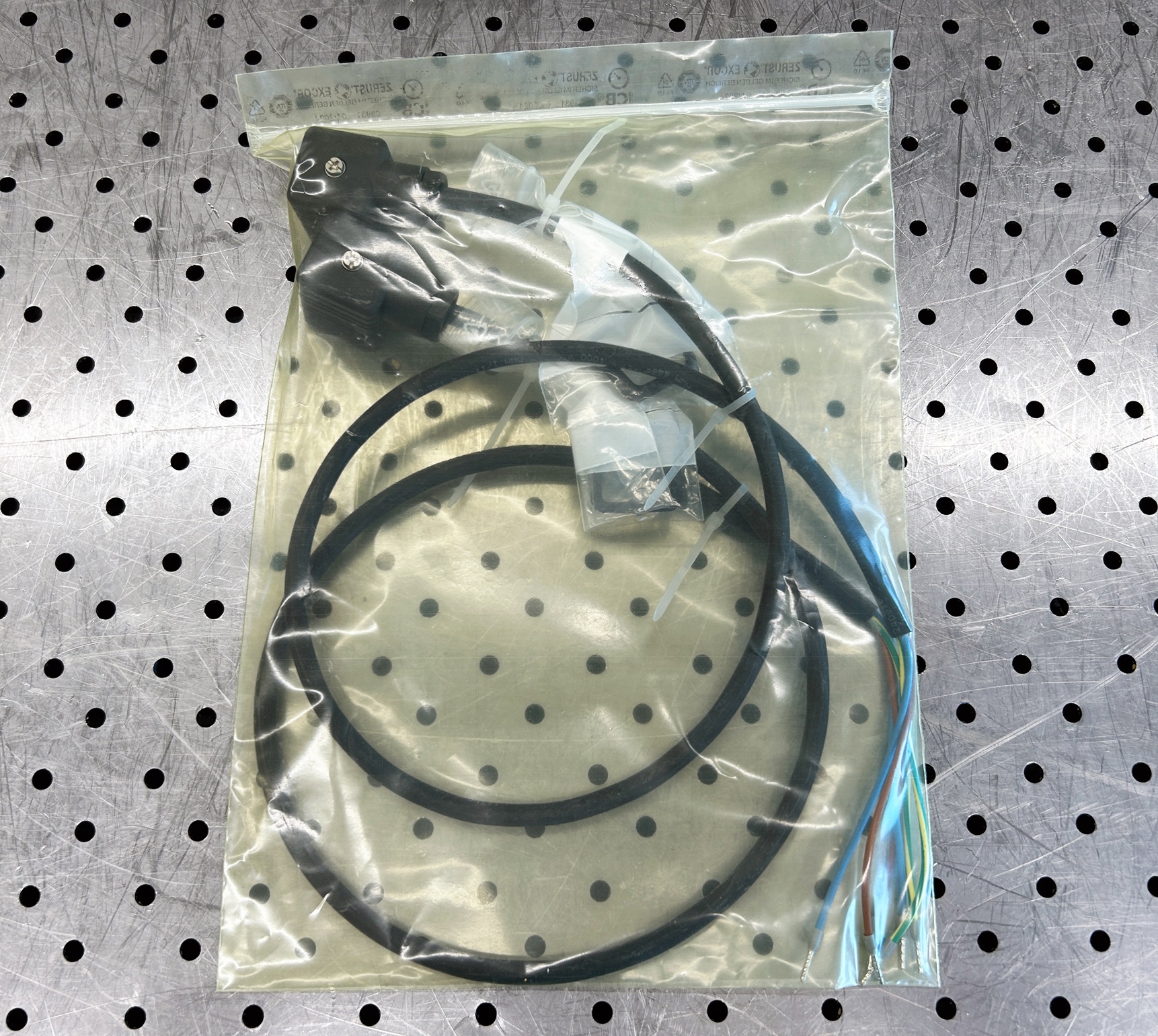

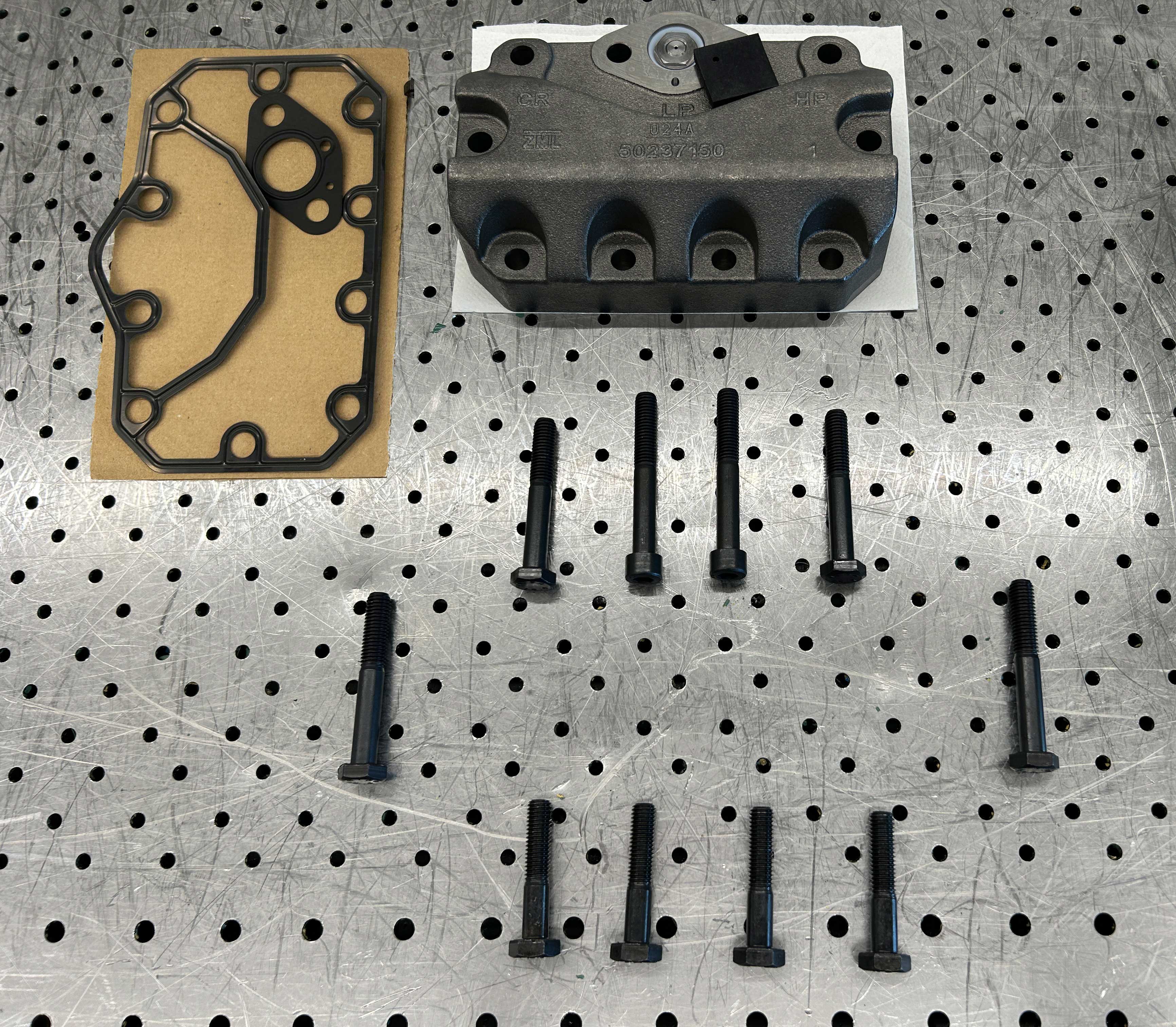

CRII kit as part of the ENERGY KIT: Example for compressors 4VES .. 4NES
The retrofit is explained in the following video instructions:
