Selecting the liquid subcooler in the BITZER SOFTWARE

An ECO process in the p, h diagram is illustrated below:

ECO operation in the p, h diagram
ECO operation in the p, h diagram

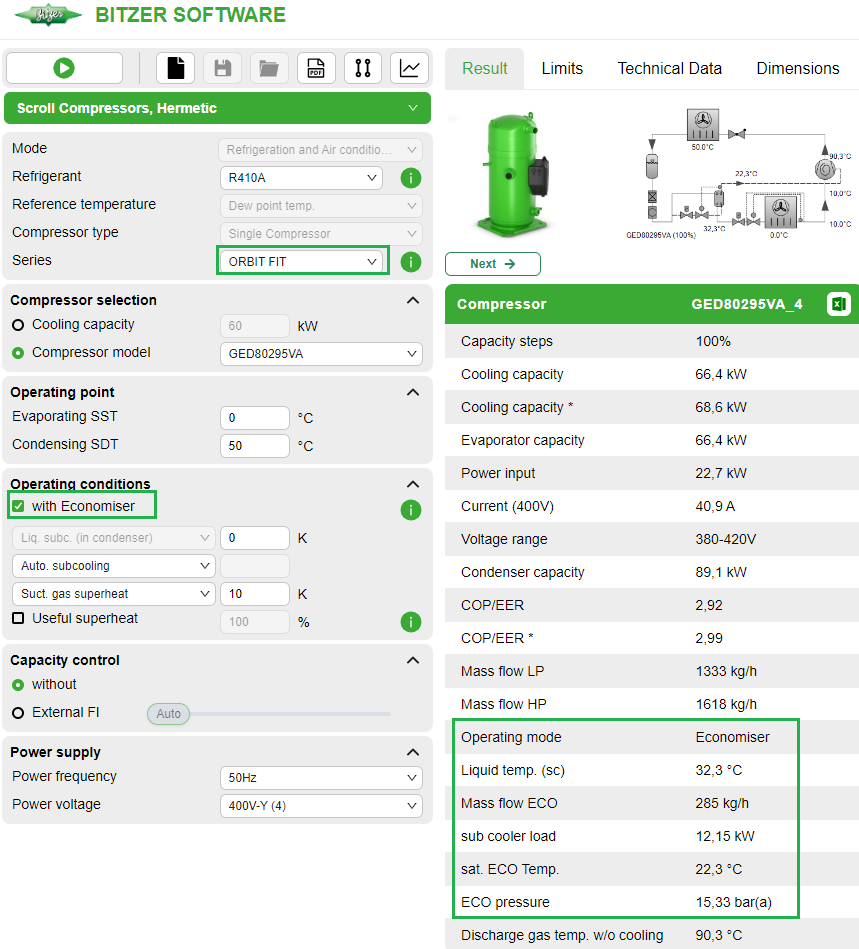

Relevant ECO performance data can be obtained in the BITZER SOFTWARE:

Performance data for economised scroll compressors in the BITZER Software
Performance data for economised scroll compressors in the BITZER Software

A standard setting of 10 K temperature difference between saturated ECO temperature and subcooled liquid temperature is used in the BITZER SOFTWARE when "Auto. subcooling" is selected. This temperature difference is also indicated as Δteco in the diagram above.

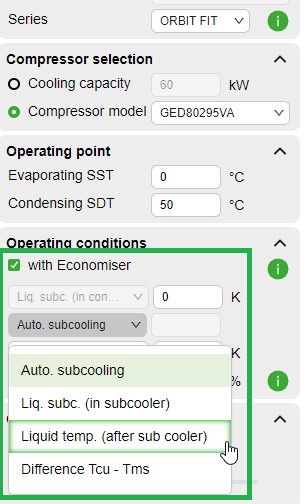

The liquid subcooler performance data can then be used in order to identify an adequately sized heat exchanger, e.g. also in the BITZER SOFTWARE. Afterwards, the performance data of the compressor must be re-calculated with adjusted liquid subcooler performance data. Actual liquid subcooling or temperature differences must be specified in the BITZER SOFTWARE:

Options in specifying the amount of liquid subcooling or temperature difference
Options in specifying the amount of liquid subcooling or temperature difference
