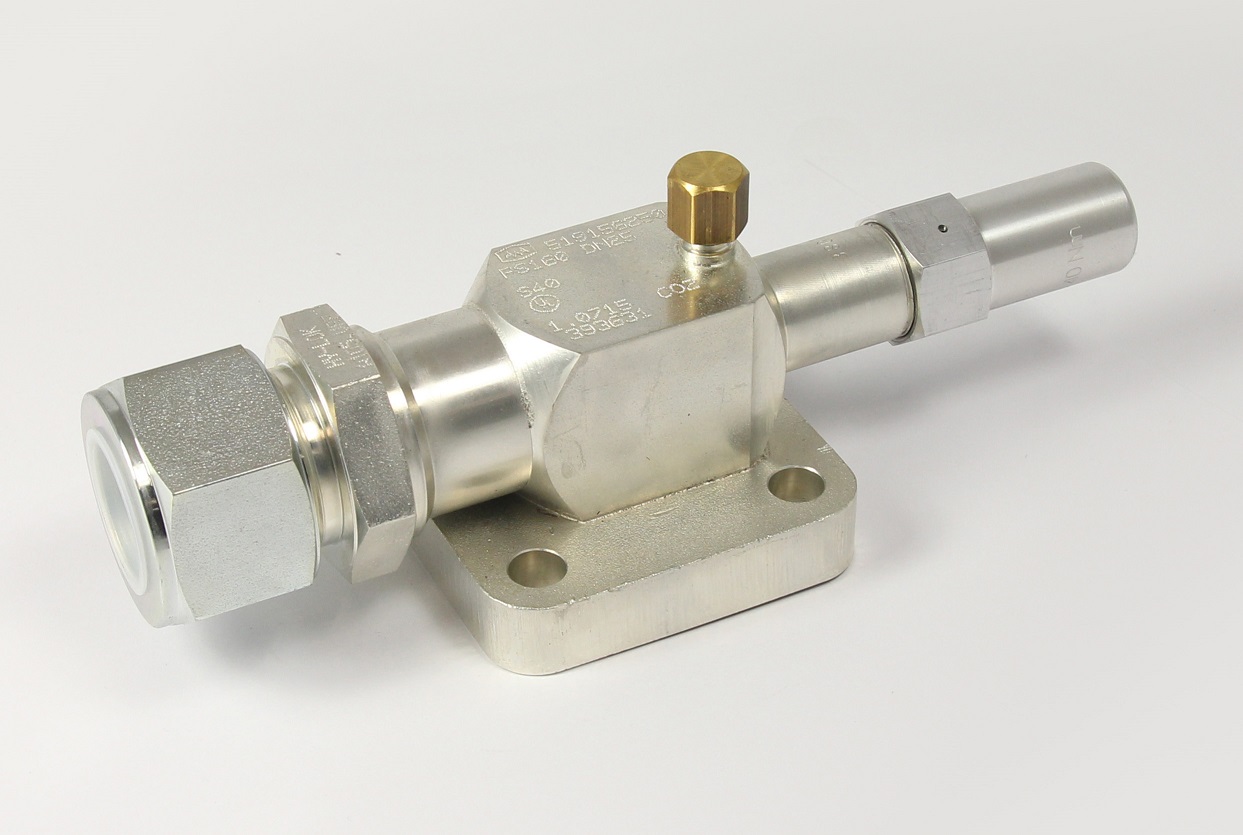

Valve Di28/Klemm
Part no. 361 367 22
Dimensions:

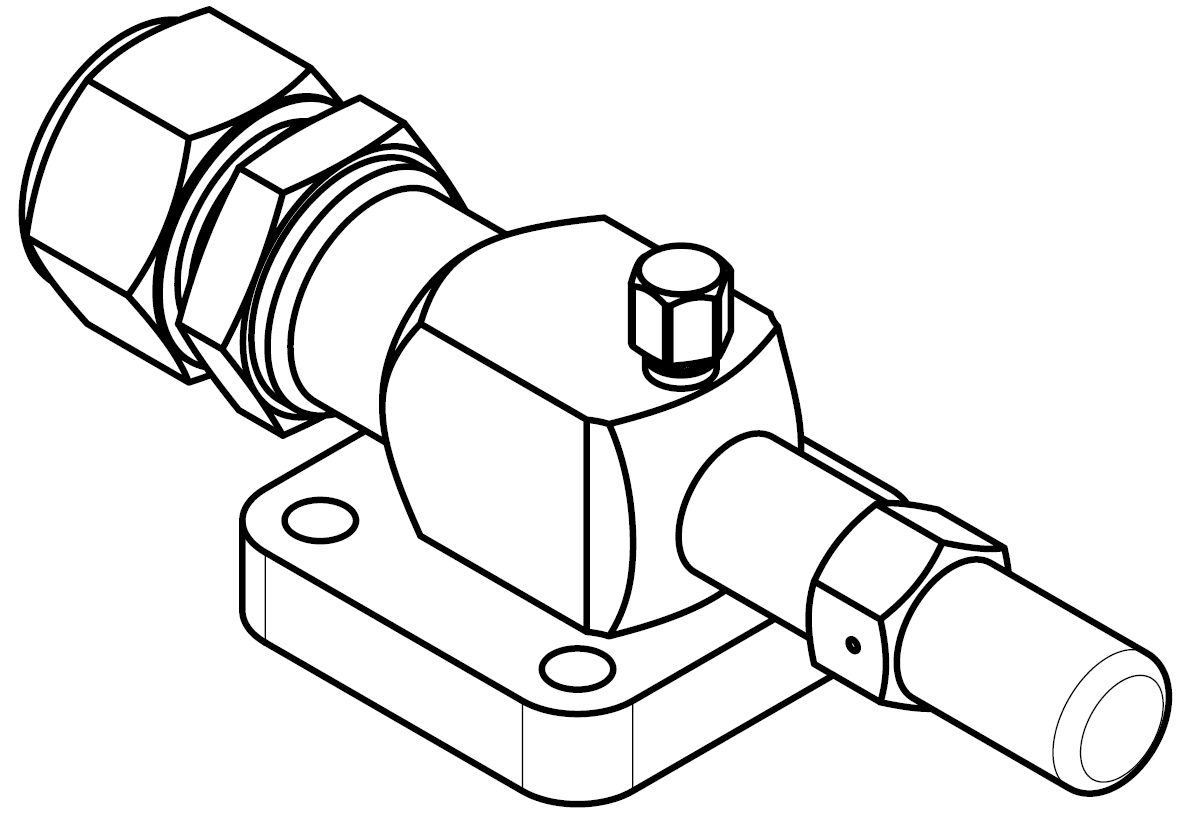

Examplary sketch of a shut-off valve with compression fitting, showing the inside diameter relevant for connection to the piping. This is an example, the valve may additionally have 1 .. 2 maintenance connections at the top or on the side. The connection to the compressor (bottom) can be a flange or Rotalock connection.
Inside diameter at pipe insertion end | 28 mm | |
Connection to compressor | flange, hole spacing 56 mm | |
Diameter of suitable copper brazing pipes | – (compression fitting DIN 475-SW46-1) | |
Diameter of suitable steel welding pipes | – (compression fitting DIN 475-SW46-1) | |
PS160|DN25|S40|TX|28|4LA56 | ||
Information
Connections with the same dimensions are not necessarily interchangeable!
Connections with the same dimensions are not necessarily interchangeable!
There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
