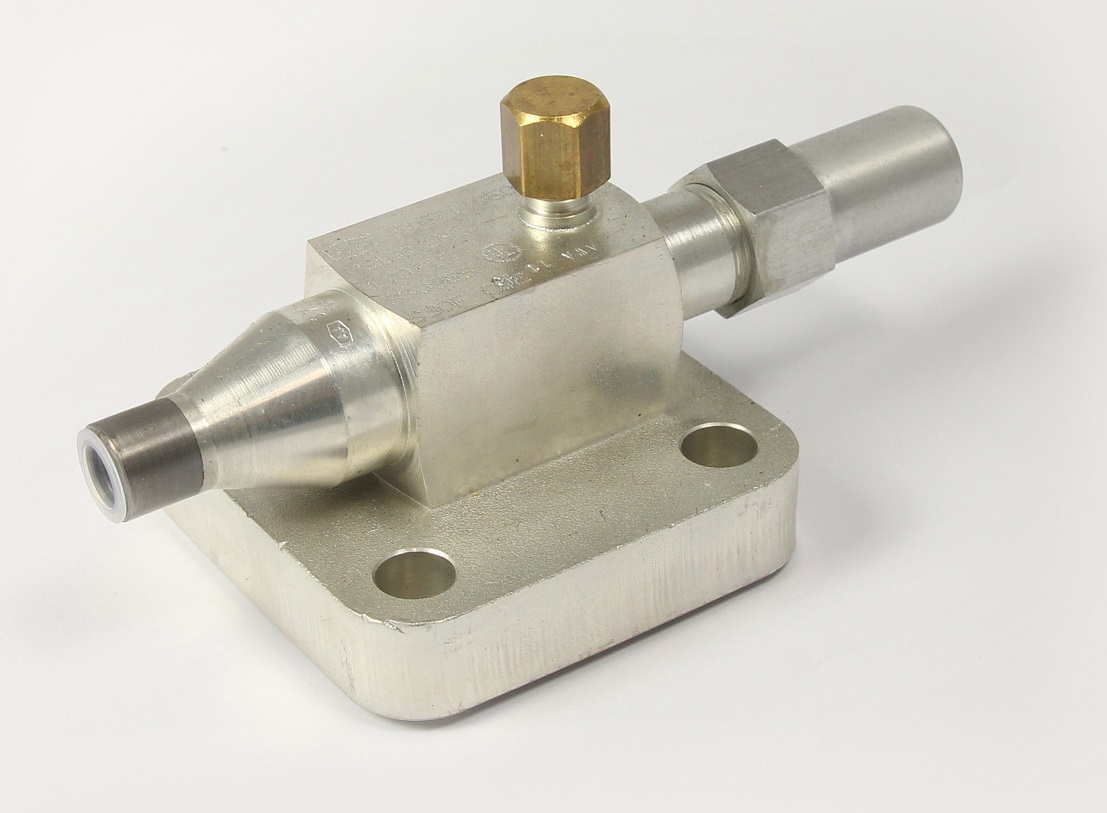

Valve Di10/Da14/TX
Part no. 361 367 20
Dimensions:

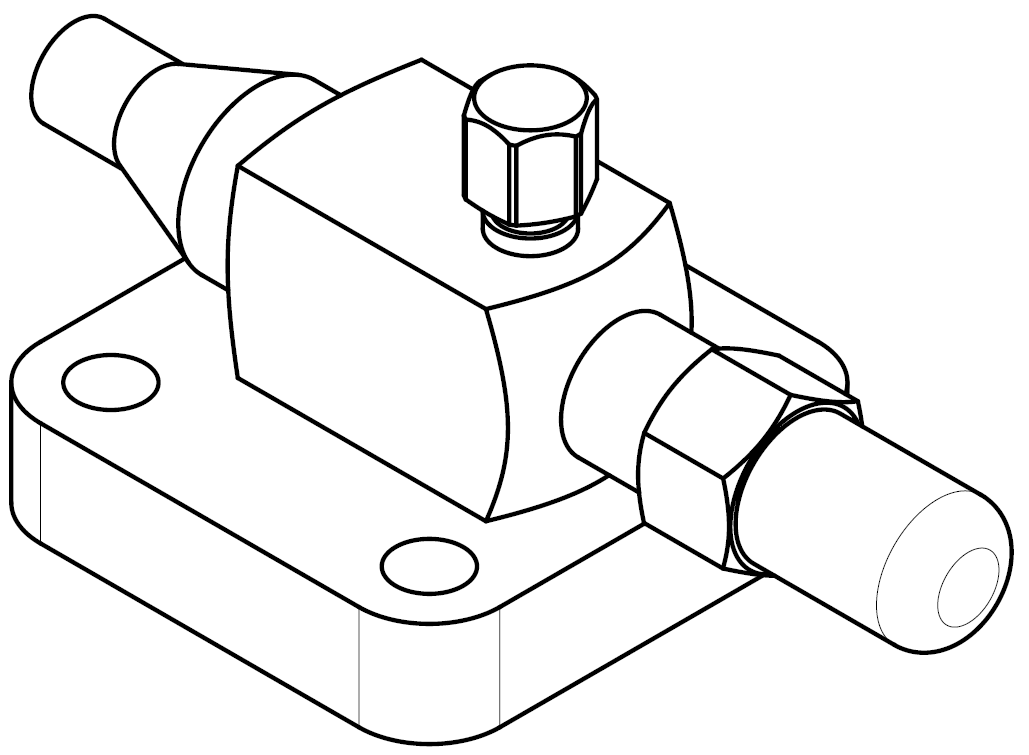

Examplary sketch of a shut-off valve, showing the dimensions that are relevant for connection to the piping:
A: Outside diameter at pipe insertion end
B: Inside diameter at pipe insertion end
C: Pipe stop diameter, stepped
This is an example. The 1 .. 2 maintenance connections can be located at the top or on the side, or they can be omitted. The connection to the compressor, pressure vessel etc. (bottom) can be a flange or Rotalock connection.
A | Outside diameter at pipe insertion end | 14 mm |
B | Inside diameter at pipe insertion end | 10,1 mm |
C | Pipe stop diameter, stepped | 9 mm |
Connection to compressor | flange, hole spacing 52 mm | |
Diameter of suitable copper brazing pipes | 3/8'' // 10 mm | |
Diameter of suitable steel welding pipes | 13,5 mm (DN8) | |
PS160|DN10|S30|TX|10|4LA52 | ||
Information
Connections with the same dimensions are not necessarily interchangeable!
Connections with the same dimensions are not necessarily interchangeable!
There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
