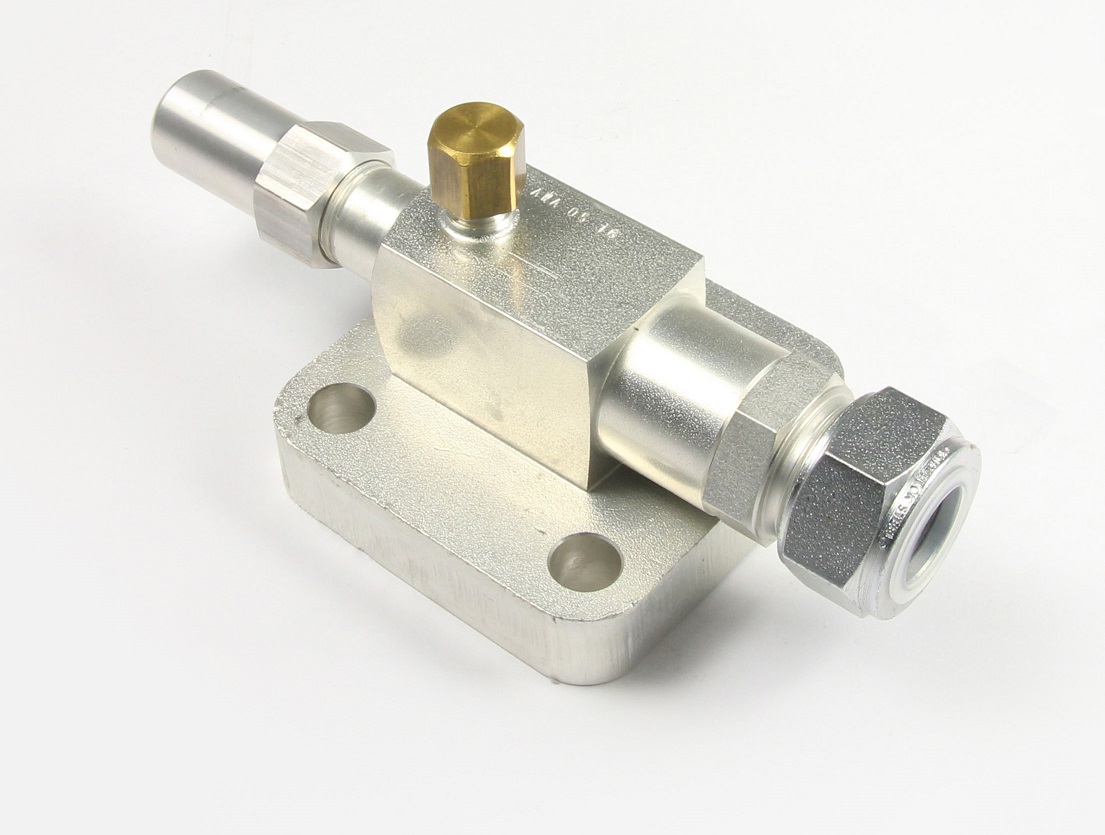

Valve Di18/Klemm

Part no. 361 367 19

Sketch

Dimensions:

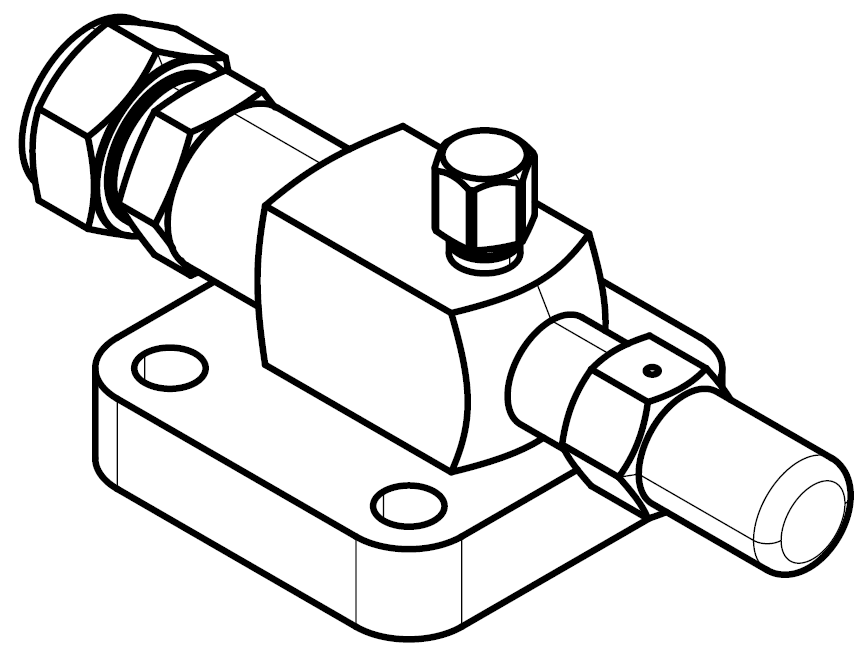

Examplary sketch of a shut-off valve with compression fitting, showing the inside diameter relevant for connection to the piping. This is an example, the valve may additionally have 1 .. 2 maintenance connections at the top or on the side. The connection to the compressor (bottom) can be a flange or Rotalock connection.
Details of valve Di18/Klemm

Inside diameter at pipe insertion end

18 mm

Connection to compressor

flange, hole spacing 52 mm

Diameter of suitable copper brazing pipes

– (compression fitting DIN 475-SW30-1)

Diameter of suitable steel welding pipes

– (compression fitting DIN 475-SW30-1)

Nomenclature of valve body

PS160|DN16|S30|TX|18|4LA52

Connections with the same dimensions are not necessarily interchangeable!

Connections with the same dimensions are not necessarily interchangeable!

There are often bushes, flanges, pipe connections or valves with similar dimensions, but they cannot necessarily be used with the same products (compressors, pressure vessels etc.)! Which connections are available for which product is listed in the corresponding tables.
