LI kit for CSVH2

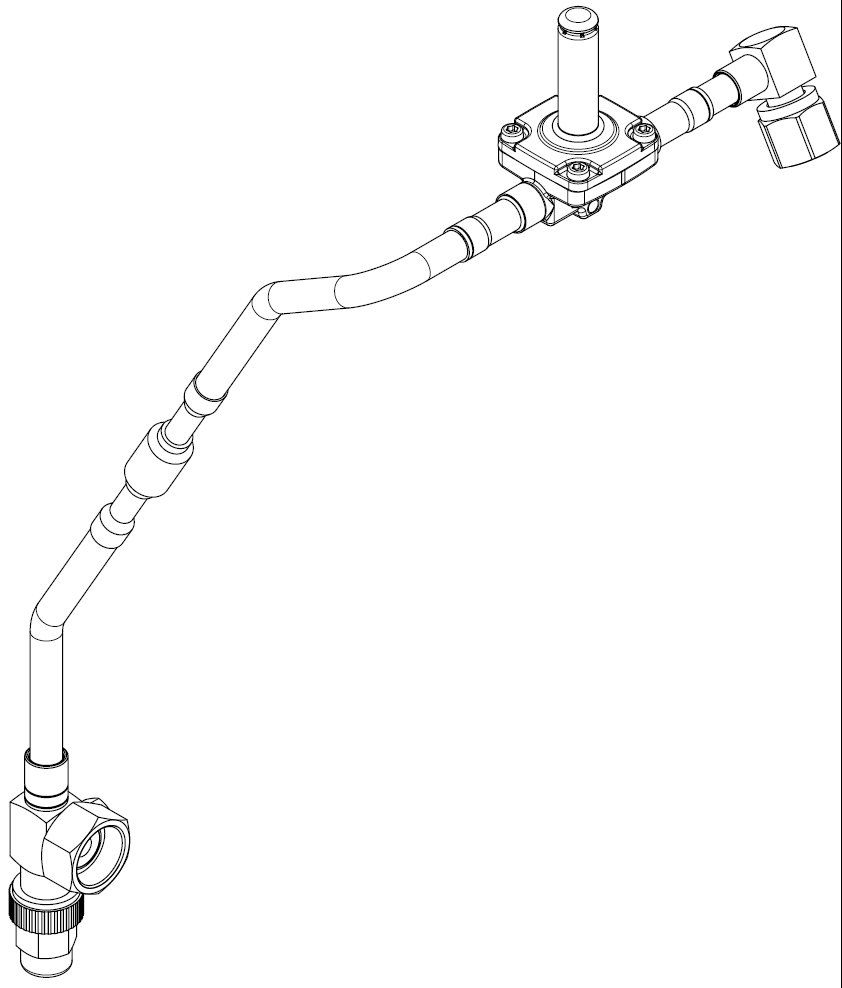

Sketch

The kit is mounted on the compressor, the piping branches off from the frequency inverter cooling line. The LI solenoid valve is wired and controlled via the frequency inverter. For retrofitting, see SW-165 (described there for CSVH3). Since the kit fits any CSVH2 compressor and no further piping is connected, the dimensions of the individual components are not relevant.

Kit as spare part:

Part no. 363 230 01:

Spare part assembly for LI kit at compressor CSVH2
