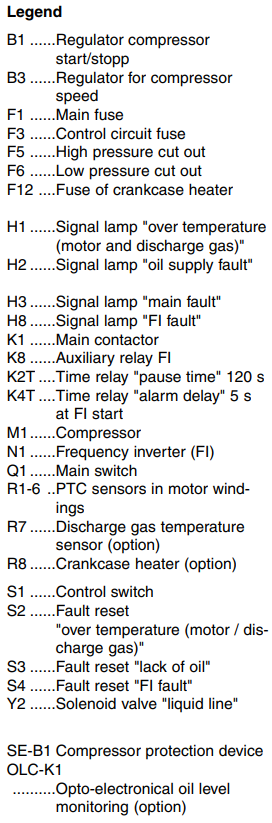

ECOLINE VARISPEED with .F3/.F4 and SE-B1

Ecoline Varispeed reciprocating compressor with frequency inverter .F3/.F4 and protection device SE-B1 (with maximum possible equipment)

Last revision of the diagram:

01.01.2012

Technical documents for further information:

KB-100: Operating instructions Semi-hermetic reciprocating compressors
KT-220: Technical information Ecoline Varispeed and Octagon CO2 Varispeed with frequency inverter .F3 and .F4
CT-120: Protection devices for BITZER compressors
