Oil heater with electric connector 300 W

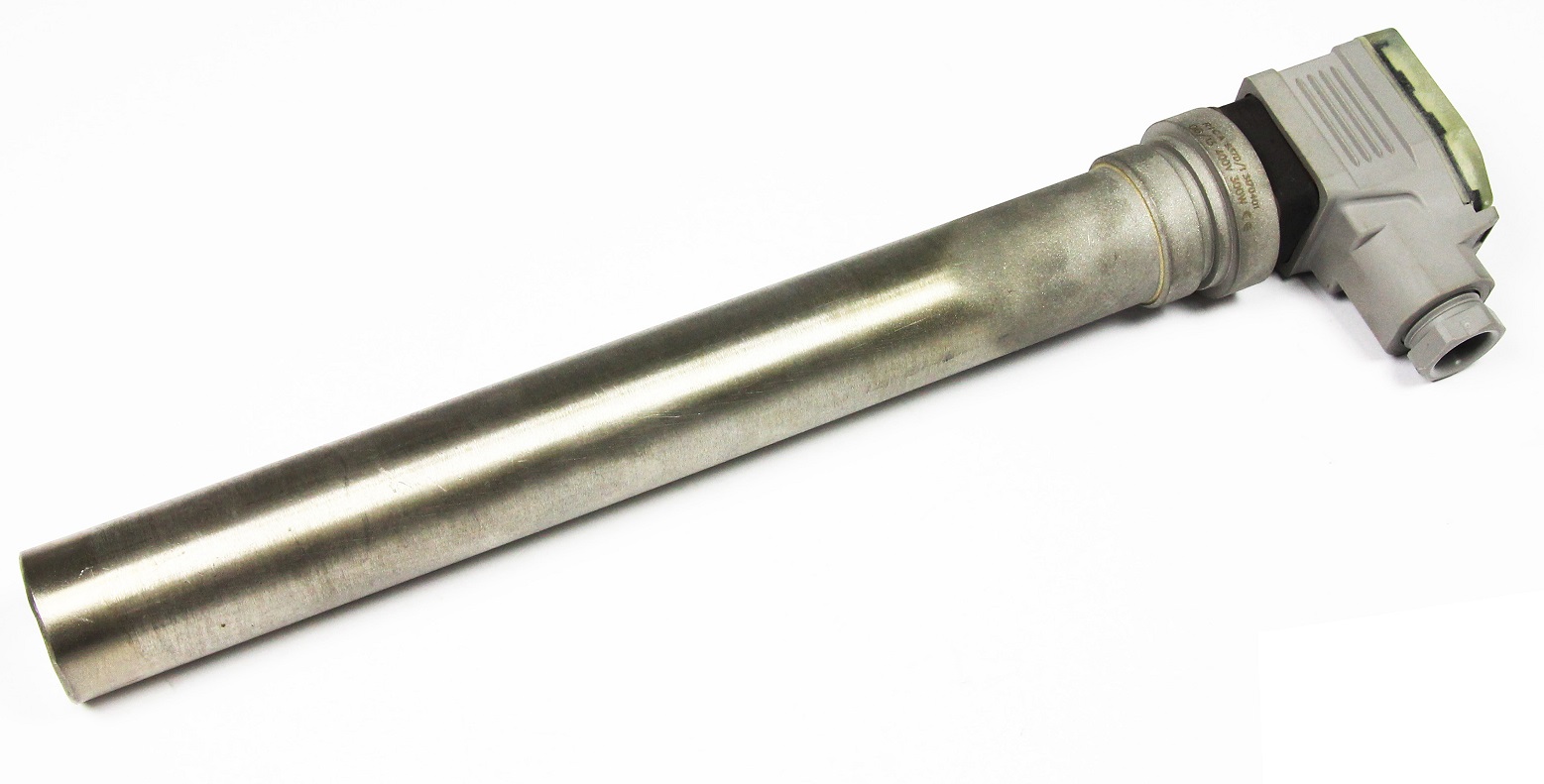

Photo (here heater for 115 V, part no. 343 218 01)
Photo (here heater for 115 V, part no. 343 218 01)

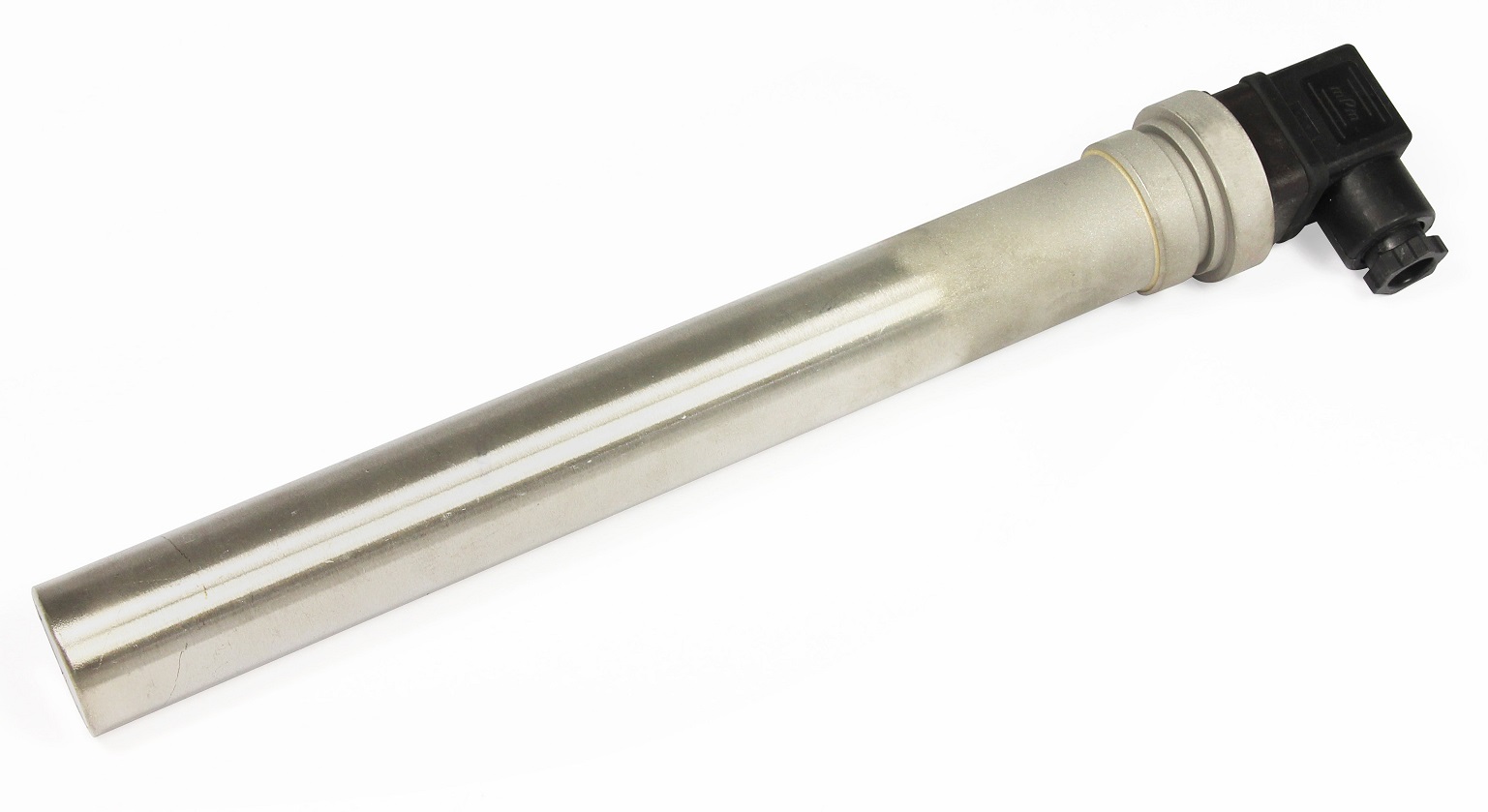

Photo (here heater for 400 V, part no. 343 218 03)
Photo (here heater for 400 V, part no. 343 218 03)

Dimensions:

Dimensions for oil heater with electric connector 300 W
Oil heaters with electric connector
Res.: resistor heater
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Length heating rod

Diameter heating rod

Matching heater sleeve (part no.)

343 218 01

(various)

Res.

115 V

300 W

246 mm

29.9 mm

– (mounted in housing bore)

343 218 02

(various)

Res.

230 V

300 W

246 mm

29.9 mm

– (mounted in housing bore)

343 218 03

(various)

Res.

400 V

300 W

246 mm

29.9 mm

– (mounted in housing bore)

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
