Oil heater with cable 120 W

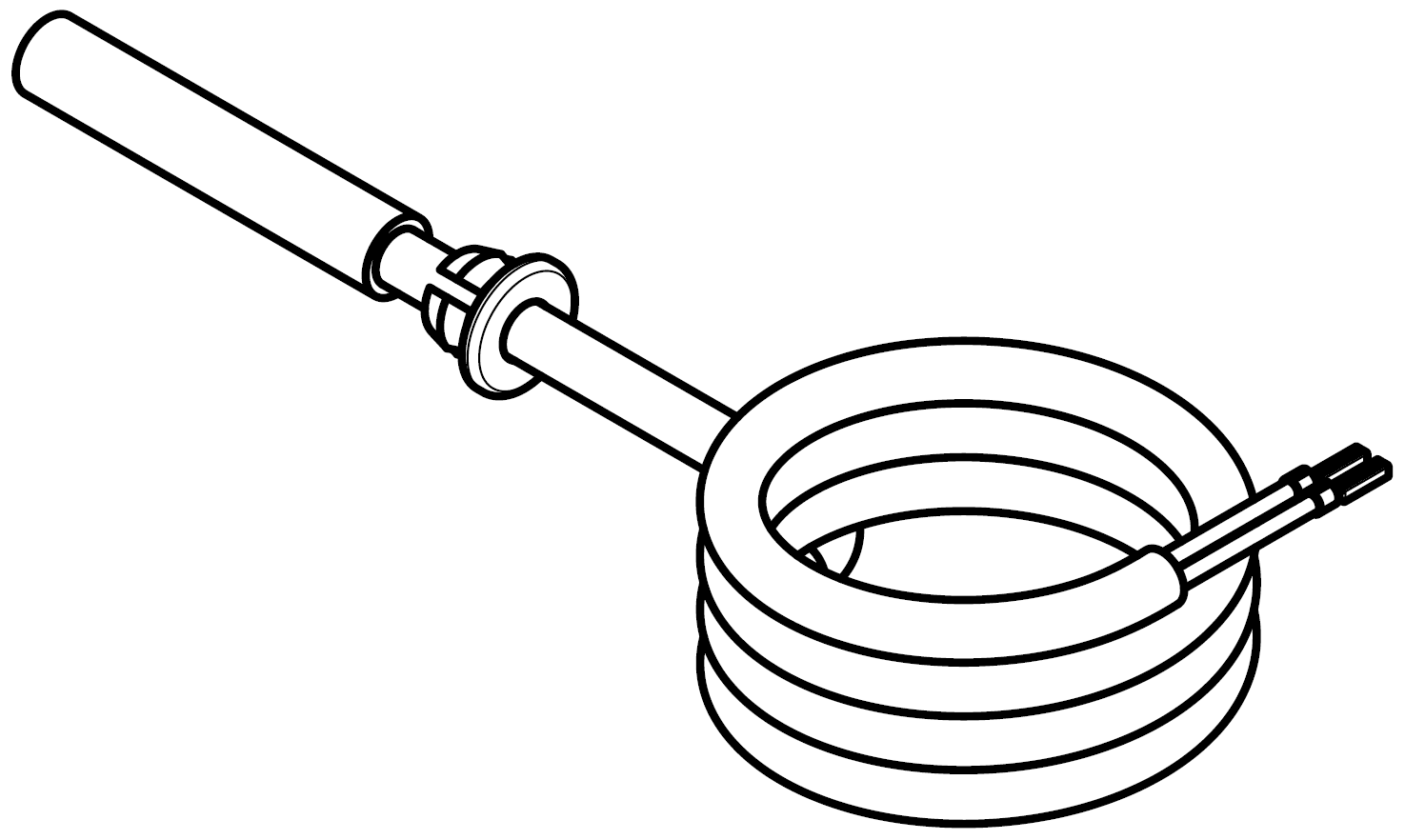

Sketch

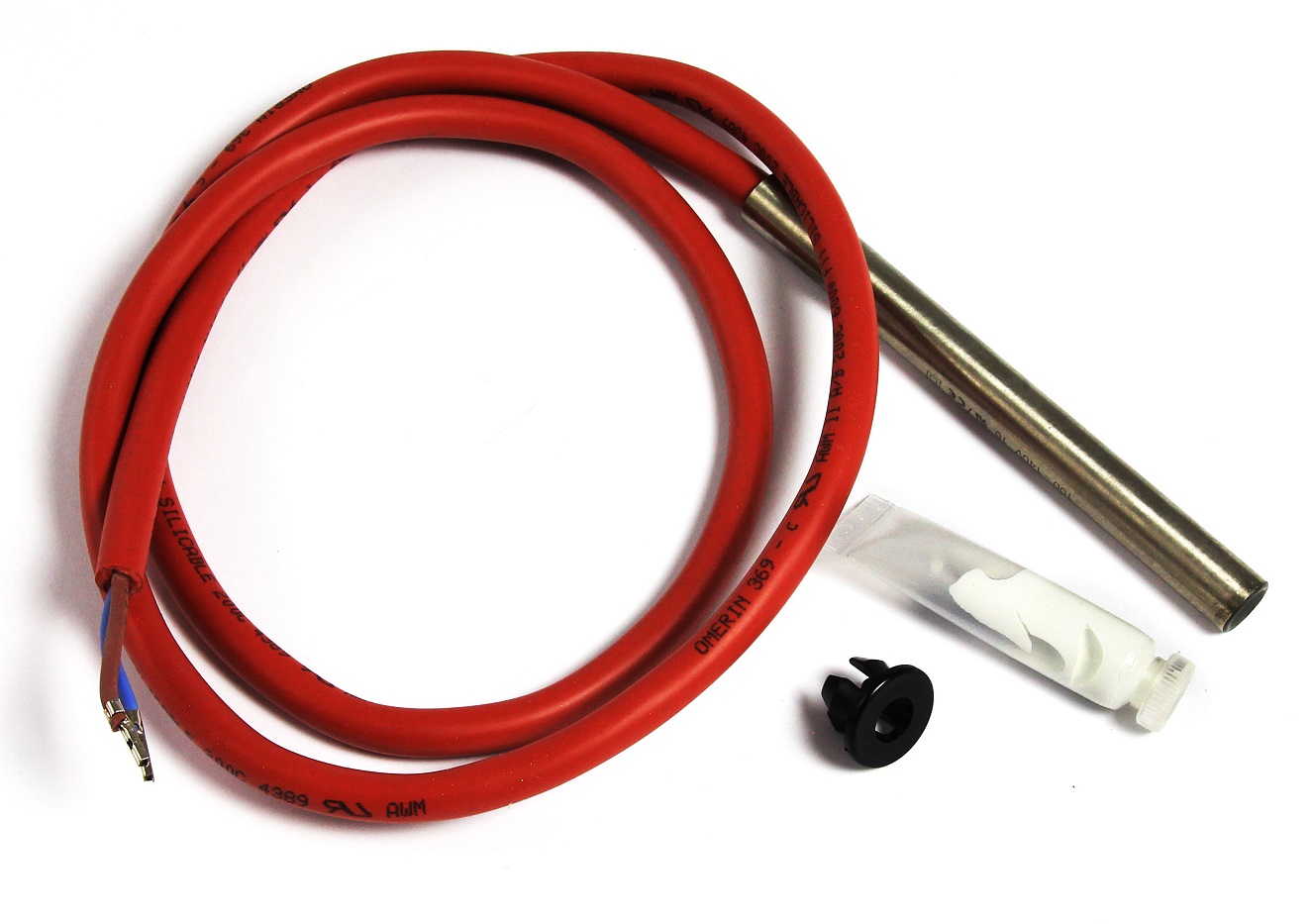

Photo (here heater for 100 .. 140 V, part no. assembly 343 219 02 (incl. heat transfer paste) with heater no. 343 217 03)
Photo (here heater for 100 .. 140 V, part no. assembly 343 219 02 (incl. heat transfer paste) with heater no. 343 217 03)

Dimensions:

Dimensions for oil heater with cable 120 W
Oil heaters with cable
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Max. power consumption (at switch-on)

Length of cable incl. plug

Length of heating rod

Diameter of heating rod

343 217 03

343 219 02

PTC

100 .. 140 V

120 W

220 W

1000 mm

113 mm

11 mm

343 217 02

343 219 01

PTC

200 .. 260 V

120 W

220 W

1000 mm

113 mm

11 mm

343 219 20

343 219 21

PTC

200 .. 260 V

120 W

220 W

900 mm

113 mm

11 mm

343 217 06

343 219 05

PTC

200 .. 400 V

120 W

220 W

1000 mm

113 mm

11 mm

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
