Oil heater with electric connector 70/80 W

Sketch

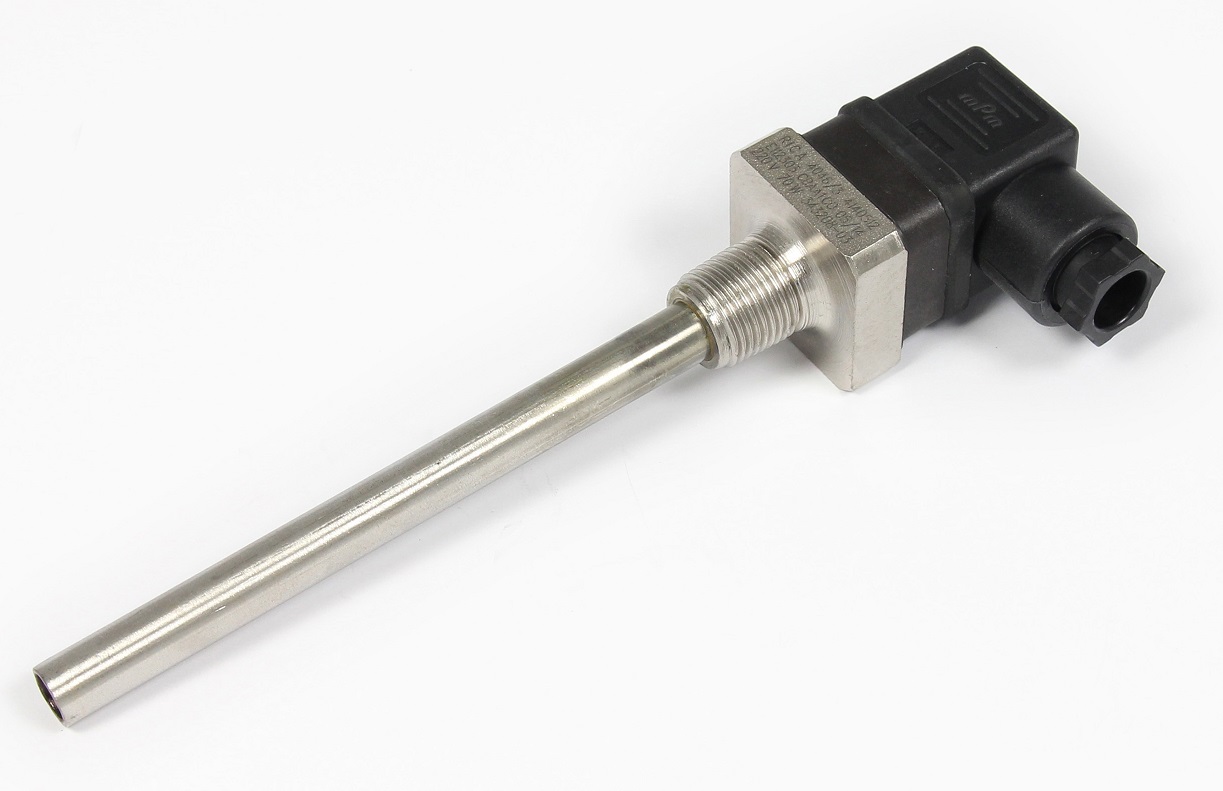

Photo (here heater for 230 V, part no. 343 208 03)
Photo (here heater for 230 V, part no. 343 208 03)

Dimensions:

Dimensions for oil heater with electric connector 70/80 W
Oil heaters with electric connector
Res.: resistor heater
*: Not suitable for refrigerant R717 (ammonia).
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Length heating rod

Diameter heating rod

Matching heater sleeve (part no.)

343 208 14

343 208 20

Res.

12 V

70 W

132 mm

10 mm

345 903 21*

343 208 01

343 208 21

Res.

24 V

70 W

132 mm

10 mm

345 903 21*

343 208 02

343 208 22

Res.

120 V

80 W

132 mm

10 mm

345 903 21*

343 208 03

343 208 23

Res.

230 V

80 W

132 mm

10 mm

345 903 21*

343 208 11

343 208 24

Res.

400 V

80 W

132 mm

10 mm

345 903 21*

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
