Oil heater with electric connector 140/150/170 W

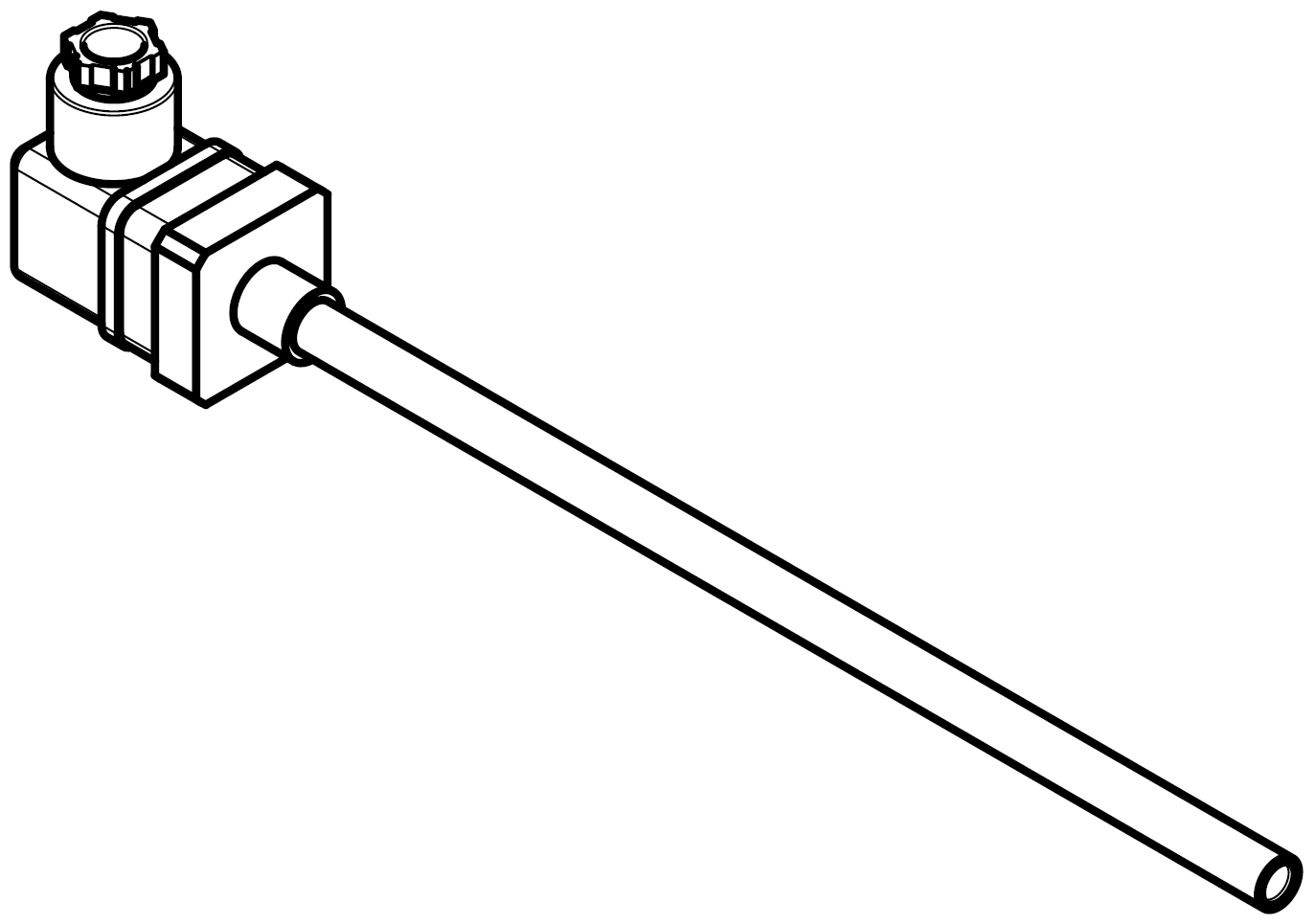

Sketch

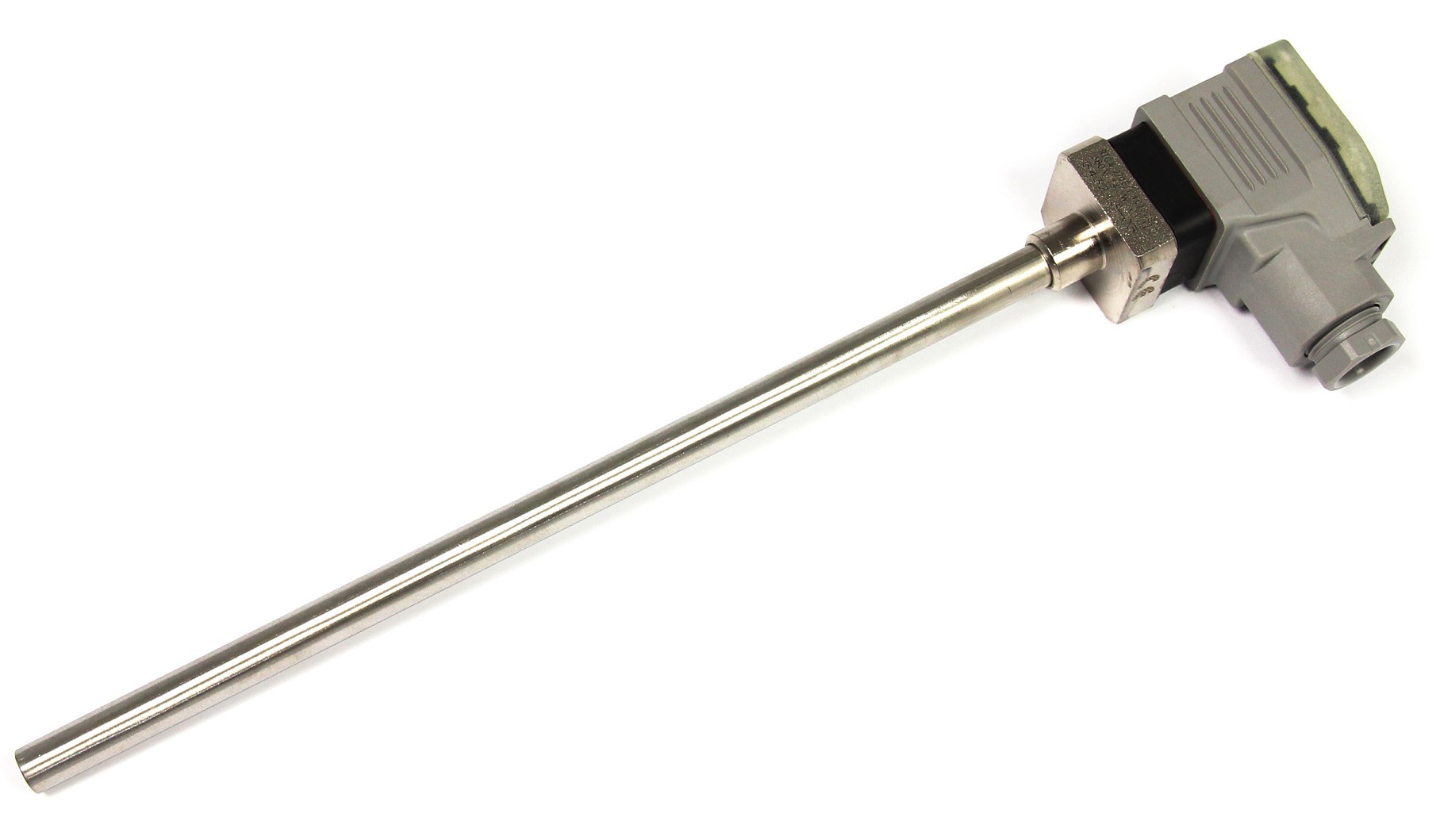

Photo (here heater for 230 V, part no. 343 213 04)
Photo (here heater for 230 V, part no. 343 213 04)

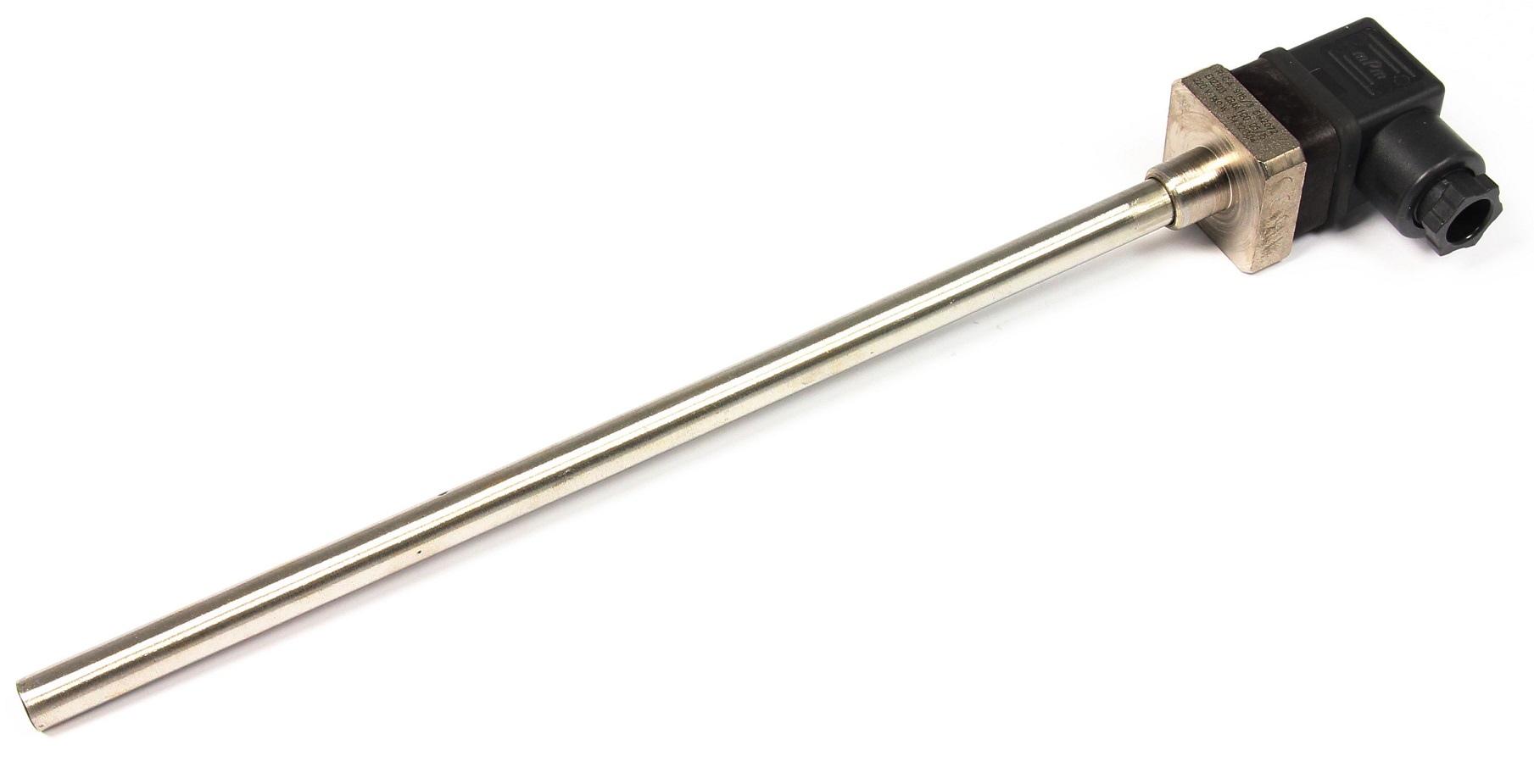

Photo (here heater for 400 V, part no. 343 213 05)
Photo (here heater for 400 V, part no. 343 213 05)

Dimensions:

Dimensions for oil heater with electric connector 140/150/170 W
Oil heaters with electric connector
Res.: resistor heater
*: Not suitable for refrigerant R717 (ammonia).
All heaters are UL certified.

Part no. heater

Included in assembly

Type

Nominal voltage

Rated capacity

Length heating rod

Diameter heating rod

Matching heater sleeve (part no.)

343 213 02

343 213 10

Res.

24 V

140 W

247.6 mm

10 mm

345 905 22*

343 213 03

343 213 11

Res.

120 V

170 W

247.6 mm

10 mm

345 905 22*

343 213 04

343 213 12

Res.

230 V

150 W

247.6 mm

10 mm

345 905 22*

343 213 05

343 213 13

Res.

400 V

150 W

247.6 mm

10 mm

345 905 22*

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
notice

For installation of the heater, it is essential to observe the operating instructions of the compressor or oil separator as well as Technical Information AW-150!
