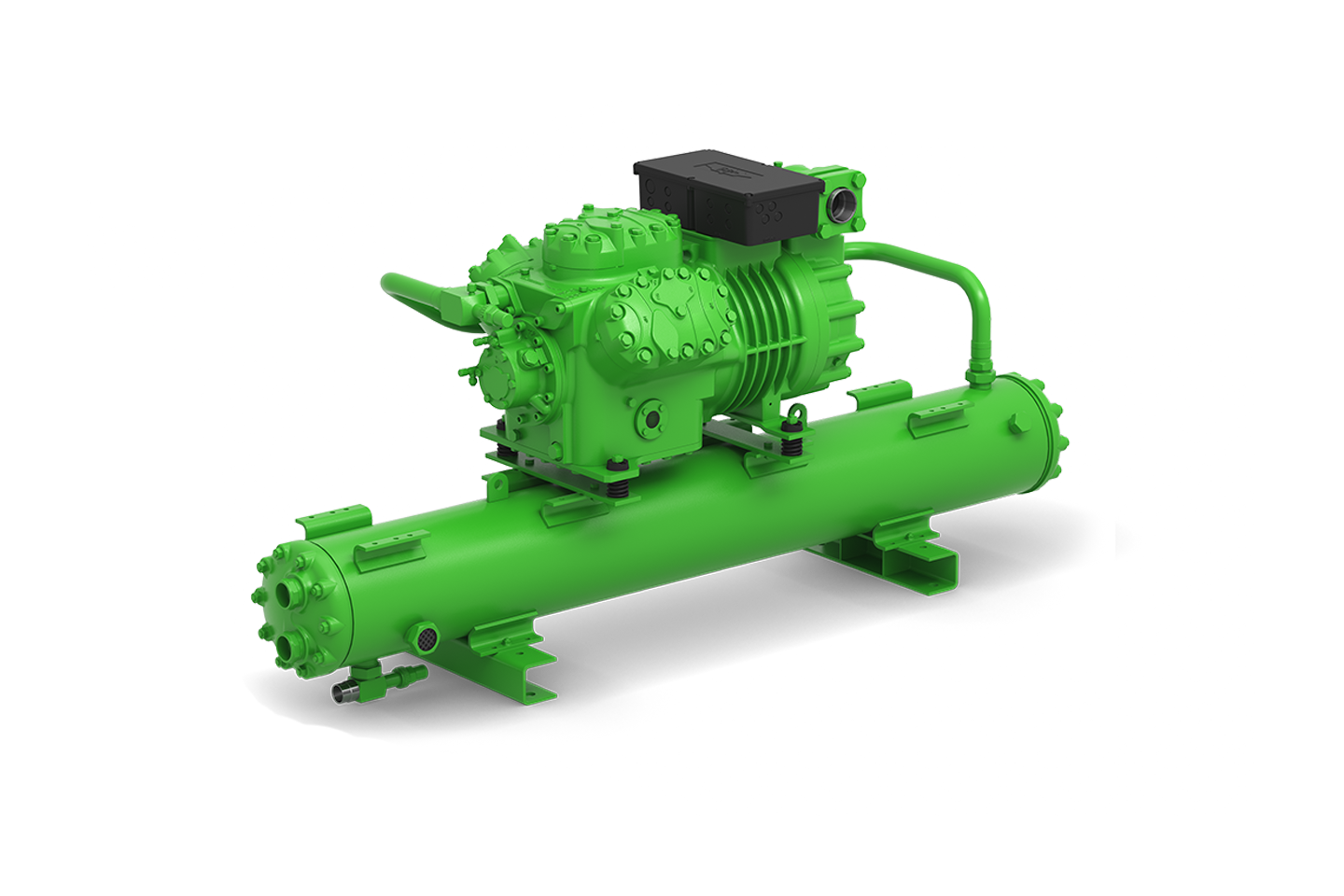

K PRO series
condensing units
The BITZER K PRO series offers water cooled condensing units for hydrocarbons with individual solutions for medium and low temperature applications. They are a future-proof solution with the natural refrigerants propane (R290) and propene (R1270).
Specifications
Product range
• Medium temperature application: 1.78 to 73.10 kW
• Low temperature application: 0.42 to 22.90 kW
• Application range:
o Evaporation temperatures: t0 = –40°C to +10°C
o Ambient temperatures: tamb = –10°C to +55°C
• Displacements: 4.06 to 151.6 m3/h at 50 Hz
• Low temperature application: 0.42 to 22.90 kW
• Application range:
o Evaporation temperatures: t0 = –40°C to +10°C
o Ambient temperatures: tamb = –10°C to +55°C
• Displacements: 4.06 to 151.6 m3/h at 50 Hz
Refrigerants
propane (R290), propene (R1270) upon request
Certifications
ErP conformity: fulfils the requirements of EU Directive 2009/125/EC (Ecodesign). The smallest unit for low temperature application is not approved for the European market.
