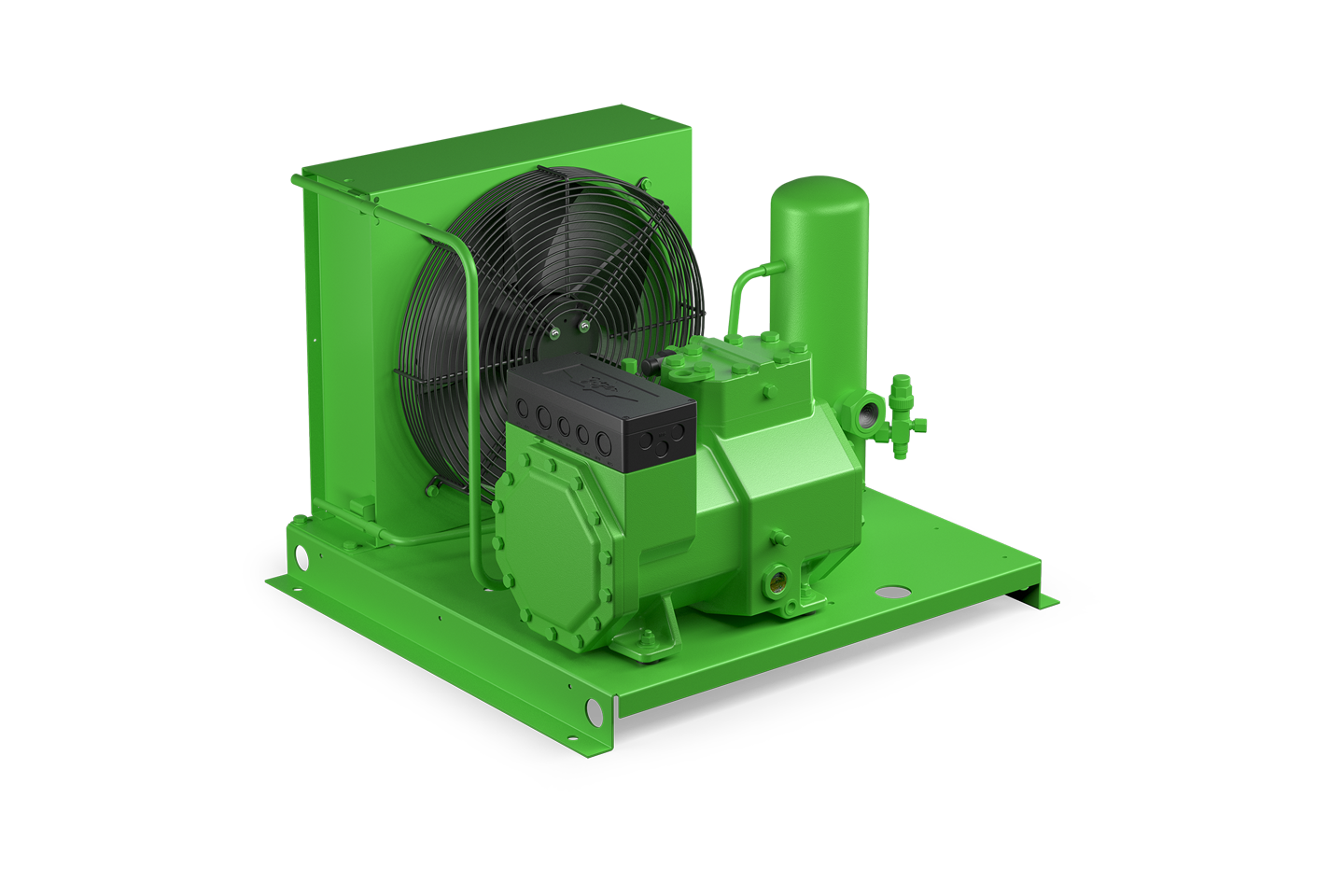

LHE PRO Condensing Units for Hydrocarbons
Air-cooled condensing units for propane (R290) and propene (R1270; on request)
The BITZER LHE PRO series offers air-cooled condensing units for hydrocarbons with individual solutions for medium- and low-temperature applications. They are a future-proof solution with the natural refrigerants propane (R290) and propene (R1270).

Specifications
Performance data
Medium temperature application: 1.74 to 44.91 kW
Low temperature application: 0.46 to 15.78 kW
Application range:
• Evaporation temperatures: t0 = –40°C to +10°C
• Ambient temperatures: tamb = -10°C to +55°C
Displacements: 4.06 to 110.5 m3/h at 50 Hz
Low temperature application: 0.46 to 15.78 kW
Application range:
• Evaporation temperatures: t0 = –40°C to +10°C
• Ambient temperatures: tamb = -10°C to +55°C
Displacements: 4.06 to 110.5 m3/h at 50 Hz
Refrigerants
propane (R290) and propene (R1270) upon request
Certifications & Conformity
ErP conformity: fulfils the requirements of EU Directive 2009/125/EC (Ecodesign). The smallest unit for low temperature application is not approved for the European market.
CE
CE
